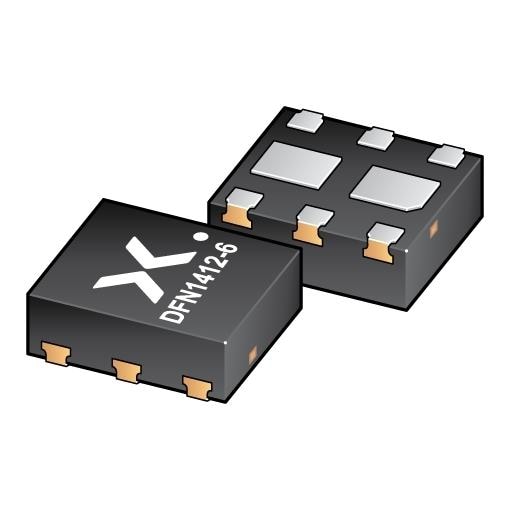

Nexperia PMBT3904RAZ BJTs - Bipolar Transistors 40 V, 200 mA NPN/NPN switching transistor
ManufacturerNexperia(View more products from this manufacturer)
ModelPMBT3904RAZ
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Technology: Si
Unit Weight: 2.358 mg
Configuration: Dual
Mounting Style: SMD/SMT
Transistor Polarity: NPN
Pd - Power Dissipation: 480 mW
DC Current Gain hFE Max: 300
Gain Bandwidth Product fT: 300 MHz
Emitter- Base Voltage VEBO: 6 V
Collector- Base Voltage VCBO: 60 V
Continuous Collector Current: 200 mA
Maximum DC Collector Current: 200 mA
Maximum Operating Temperature: + 150 C
Minimum Operating Temperature: - 55 C
DC Collector/Base Gain hfe Min: 100
Collector- Emitter Voltage VCEO Max: 40 V
Collector-Emitter Saturation Voltage: 120 mV
