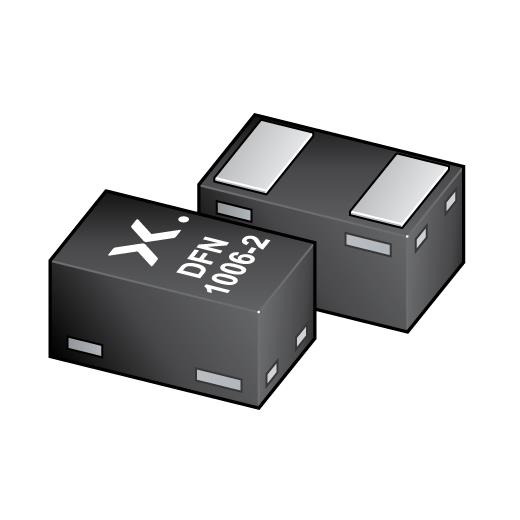

Nexperia PESD24VS1UL,315 ESD Suppressors PESD24VS1UL/SOD882/SOD2
Manufacturer: Nexperia Model: PESD24VS1UL,315 - Contact
Polarity: Unidirectional
Unit Weight: 1.090 mg
Working Voltage: 24 V
Clamping Voltage: 70 V
Breakdown Voltage: 27.5 V
Termination Style: SMD/SMT
Number of Channels: 1 Channel
Cd - Diode Capacitance: 50 pF
Ipp - Peak Pulse Current: 3 A
Vesd - Voltage ESD Air Gap: 15 kV
Vesd - Voltage ESD Contact: 8 kV
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 65 C
Pppm - Peak Pulse Power Dissipation: 150 W
