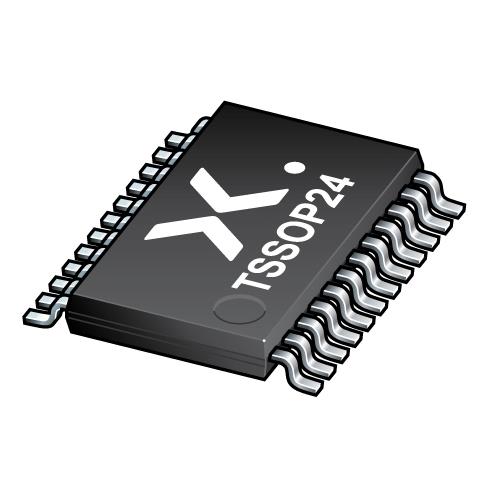

Nexperia NCA9535PWJ I2C and SMBus I/O Expander ANALOG & LOGIC

Features: SCL and SDA Inputs

Output Type: Open Drain

Interface Type: I2C, Serial, SMBus

Mounting Style: SMD/SMT

Number of I/Os: 16 I/O

Output Current: +/- 10 mA, +/- 25 mA

Interrupt Output: With Interrupt

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 1.65 V

Pd - Power Dissipation: 200 mW

Maximum Clock Frequency: 400 kHz

Operating Supply Current: 160 mA

Operating Supply Voltage: 1.65 V to 5.5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
