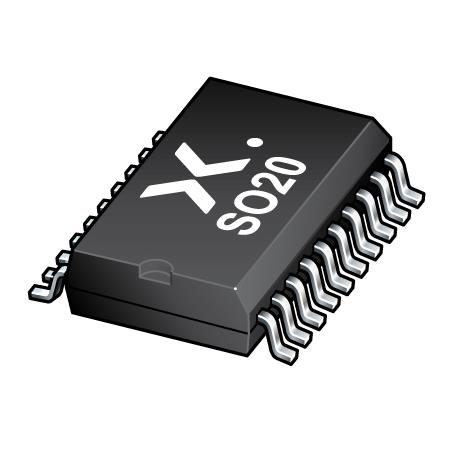

Nexperia 74HCT245D,653 CMOS 74HCT245D/SOT163/SO20
Manufacturer: Nexperia Model: 74HCT245D,653 - Contact
Width: 7.6 mm
Height: 2.45 mm
Length: 13 mm
Function: Bus Transceiver
Polarity: Non-Inverting
Input Level: TTL
Output Type: 3-State
Unit Weight: 266.700 mg
Logic Family: HCT
Output Level: CMOS
Mounting Style: SMD/SMT
Number of Channels: 8 Channel
Number of Circuits: 1 Circuit
Supply Current - Max: 8 uA
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Propagation Delay Time: 22 ns
Low Level Output Current: 6 mA
High Level Output Current: - 6 mA
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
