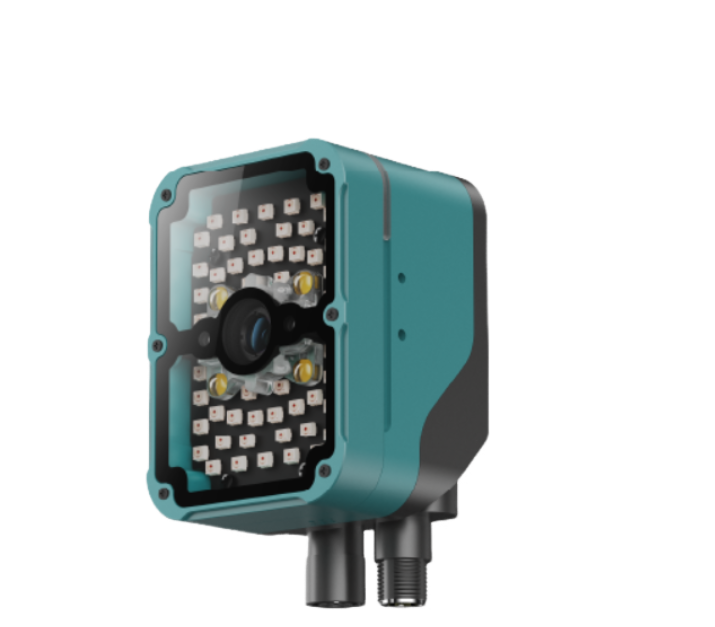

Main unit: Standard type
Sensor: CMOS Image Sensor
Number of pixels: 1920 × 1200 pixels
Illumination: 50 red dot matrix + 4 High-intensity white LED
Polarising filter: For full lighting(Optional)
Effective focal length: 9mm
Aim: 2*circular laser
Reading specifications
Supported symbol:
1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, Code 39,Code 11, MSI-Plessey, Plessey, Deutsche14, Deutsche12
2D: QR Code, Data Matrix, PDF417, Aztec Code, Micro QR.
Minimum resolution
1D: 1mil
2D: 2.5mil
Reading distance: 50 to 1000mm
Motion Tolerance: 2m/s
Min. Symbol Contrast: ≥15%
Physical
Mechanical/ Electrical specifications
Dimensions: 61(W)×52.1(D)×100.9(H)
Weight: 394.7g
Prompt: Buzzer, pilot lamp
Power voltage: 24VDC
Current@ 24V DC
Rated power: 7.9W
Standby current: 47mA
Input: Maximum load current: 15mA (Input: 5 V~30V); 2 inputs
Output: Maximum load current 50mA (Input:≤30V); 2 outputs
Communication Interface: RS-232, RS485(optional), USB, TCP/IP, UDP, FTP, Modbus, Ethernet/IP, Profinet
