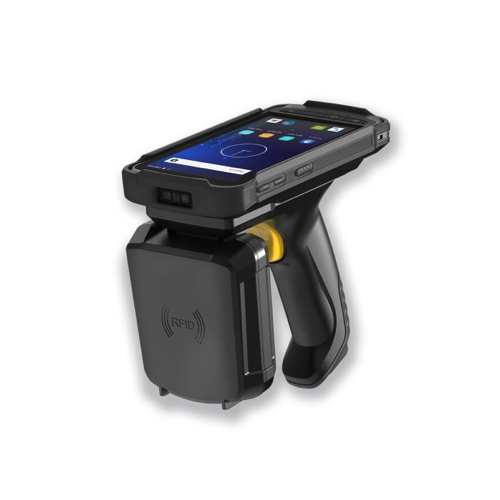

NEWLAND MT90 RFID Portable Data Collector (2.0GHz, octa-core 64-bit processor)

Processor: 2.0GHz, octa-core 64-bit processor

Operating System: Android 11

Memory: 4GB RAM, 64GB ROM

Depth of Field: QR (15mil): 55mm-410mm; EAN 13 (13mil): 70mm-610mm; Code 39 (5mil): 110mm-290mm; DM (10mil): 110mm-260mm; PDF 417 (6.7mil): 110mm-230mm

Dimensions: Max Dimensions: 155 × 78 × 20mm; Handheld Dimensions: 155 × 76 × 18mm

Weight: 270g (including battery)

Display: 5-inch (1280×720) capacitive touch screen

Keypad: 10 keys (including side keys)

Notification: Vibrator, speaker, and multi-color LED

Battery: 3.8V; 4500mAh

Battery Operating Time: 10 hours

Battery Charging Time: <5 hours (charged via AC adapter)

GPS: GPS (AGPS), GLONASS

Camera: 8 megapixels, autofocus, with LED flashlight

Expansion: Micro SD card slot (up to 128GB)

Connectivity: Micro USB 2.0 OTG

AC Adapter: Output: DC5V, 2.0A; Input: AC100~240V, 50~60Hz

Operating Temperature: -20℃ to 55℃ (-4°F to 131°F)

Storage Temperature: -40℃ to 70℃ (-40°F to 158°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±15 kV (Air discharge), ±8 kV (Direct discharge)

Drop Resistance: 1.5m drops to concrete (for six sides, once per side)

Tumble Spec.: 0.5m, 10 times/minute, 500 times (250 tumbles)

Sealing: IP65 or IP67 (optional)

Accessories (Optional): AC power adapter, cable, battery, charging cradle, wrist strap, trigger handle, RFID handheld reader, long-range barcode reader, protective sleeve, etc.

UHF RFID

Reading Range: >12M (Indoor); >6M (Outdoor open space) (@ Alien 9662) (Reading range may be affected by tags and environment)

Reading Speed: ≥150 tags/second (Reading speed may be affected by tags and environment)

UHF Module: SLR1200, based on Impinj Indy R2000

Antenna: Circularly polarized antenna (3dB)

Frequency Range: FCC (USA): 902-928MHz; ETSI (Europe): 865-867MHz; SRRC-MII (China): 840-845MHz, 920-925MHz; Supports other bands (customizable upon request)

Supported Protocol: EPC Class 1 Gen 2 (ISO 18000-6C)
