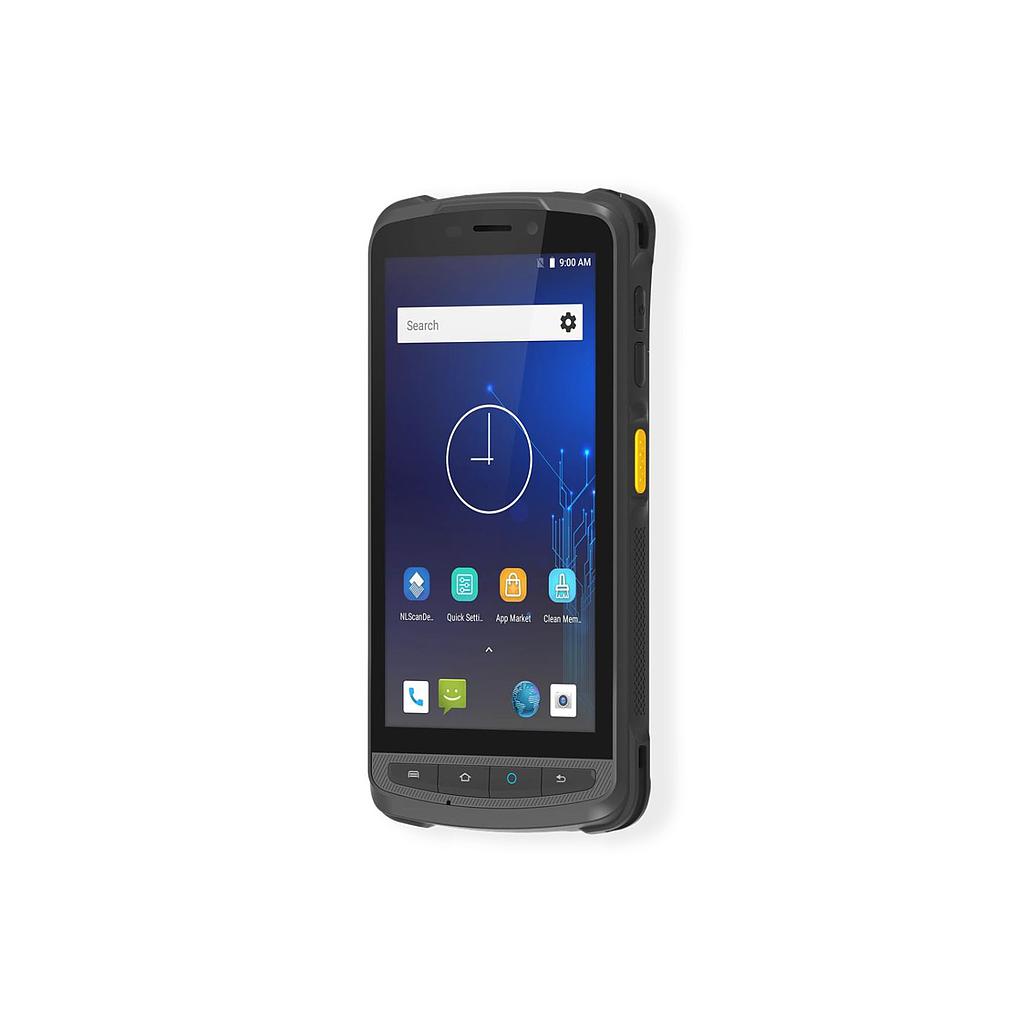

NEWLAND MT90 Pro Portable Data Collector (1.5GHz quad-core 64-bit processor)

Processor: 1.5GHz quad-core 64-bit processor

Operating System: Android 10.0

Memory: 4GB RAM, 64GB ROM

Depth of Field: Code39 (20mil): 90mm-600mm; EAN13 (13mil): 60mm-420mm; Code39 (5mil): 102mm-205mm; DM (10mil): 110mm-275mm; PDF417 (6.7mil): 90mm-173mm; QR (15mil): 40mm-230mm

Dimensions: Max Dimensions: 155 × 78 × 20mm; Handheld Dimensions: 155 × 76 × 18mm

Weight: 265g (including battery)

Display: 5-inch (1280×720) capacitive touch screen, Corning Gorilla Glass

Keypad: 10 keys (including side keys)

Notification: Vibrator, speaker, and multi-color LED

Battery: 3.8V, 4500mAh (optional 6500 mAh)

GPS: GPS (A-GPS)/GLONASS or GPS (A-GPS)/Galileo

Camera:

Front Camera (optional): 2 megapixels

Rear Camera: 13 megapixels, autofocus, with LED flashlight

Expansion: SIM*1, Micro SIM*1, TF*1

Connectivity: Micro USB 2.0 OTG at the bottom, 8-pin extended contact at the rear.

AC Adapter: Output: DC5V, 2.0A; Input: AC100~240V, 50~60Hz

Operating Temperature: -20℃ to 55℃ (-4°F to 131°F)

Storage Temperature: -40℃ to 70℃ (-40°F to 158°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±15 kV (air discharge), ±8 kV (direct discharge)

Drop Resistance: 1.5m drops to concrete (for six sides, once per side)

Tumble Spec.: 0.5m, 10 times/minute, 500 times (250 tumbles)

Sealing: IP65 or IP67 (optional)

WLAN: Built-in 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, Support 2.4G and 5G dual frequency. Roaming: Support Fast Roaming

WWAN Radio:

2G: GSM: 850/900/1800/1900MHz

3G: WCDMA: B1/B2/B5/B8; TD-SCDMA: B34/B39; CDMA 1x/EVDO: BC0

4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28a&b; TDD-LTE: B38/B39/B40/B41(100M)

Bluetooth: Dual mode, BT4.2+LE (Backward-compatible)

RFID: 13.56MHz

.: ISO14443A/B, MIFARE, FeliCa, NFC Forum Tags, ISO15693

Accessories (Optional): AC power adapter, cable, battery, charging cradle, wrist strap, trigger handle, RFID handheld reader, long-range barcode reader, protective sleeve, etc.
