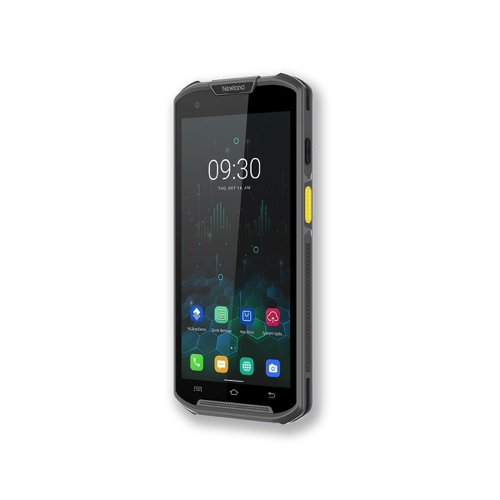

NEWLAND MT10 Mobile Computer (2.4GHz, octa-core 64-bit processor)

Processor: 2.4GHz, octa-core 64-bit processor

Operating System: Android 13

Memory: 4GB RAM, 64GB ROM

Barcode Symbologies:

2D: Aztec, Composite, CS Code, Maxicode, Micro PDF, Micro QR, PDF 417, QR Code, Data Matrix, DotCode.

1D: Code128, Code 49, Code 16K, (GS1128) UCC/EAN-128, AIM-128, EAN-8, EAN-13, UPC-E, UPC-A, ITF, ITF 6, ITF 14, Matrix 2 of 5, Industrial 25, Standard 2 of 5, Code39, ISSN, ISBN, CodaBar, Code93, Code 11, Plessey, MSI Plessey, RSS.

Depth of Field:

EAN-13: 70mm-600mm (13mil)

Code39: 120mm-280mm (5mil)

PDF17: 110mm-230mm (6.7mil)

Data Matrix: 110mm-260mm (10mil)

QR Code: 55mm-400mm (15mil)

Dimensions: 165(L) × 78.5(W) × 15.5(H) mm

Weight: 287g (including battery)

Display: 6.1-inch (720×1560) multi-touch capacitive screen with Gorilla Glass

Keypad: 5 keys (including side keys)

Notifications: Vibrator, speaker, and multi-color LED

Battery: 3.85V, 6000mAh

GPS: GPS (AGPS), GLONASS, Beidou, Galileo

Camera:

Front Camera: 8 megapixel

Rear Camera: 13 megapixel, autofocus, with LED flashlight

Expansion Slots: Nano+Nano SIM

Connectivity: Type-C 2.0 OTG, Type-C earphone

AC Adapter:

Output: DC5V/7V/9V, 2A

Input: AC100~240V, 50~60Hz

Power: Supports 18W fast charging

Operating Temperature: -20℃ to 50℃ (-4°F to 122°F)

Storage Temperature: -30℃ to 60℃ (-22°F to 140°F)

Humidity: 5% to 95% (non-condensing)

ESD: ±15 kV (Air discharge), ±8 kV (Direct discharge)

Drop Specification: 1.5m drops to concrete (for six sides, one drop per side)

Sealing: IP67

WLAN Radio: Built-in 802.11 a/b/g/n/ac/ax, 2.4G and 5G dual frequency, support WiFi 6

WWAN Radio:

2G: GSM (B2, B3, B5, B8)

3G: WCDMA (B1, B2, B5, B8)

4G: TDD-LTE (B34, B38, B39, B40, B41), FDD-LTE (B1, B2, B3, B5, B7, B8, B20, B28 a&b)

WPAN Radio: Bluetooth 5.2

NFC: ISO14443A/B, ISO15693, ISO18000-3, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags

Accessories (Optional): AC power adapter, cable, rubber boot, hand strap, tempered glass screen protector
