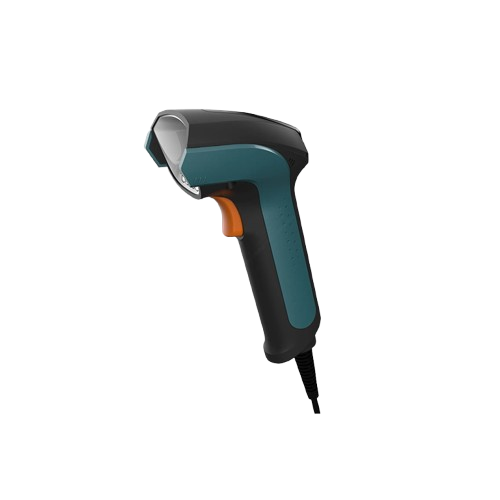

NEWLAND HH220-HD Barcode Scanner (≥3 mil; 1280 × 960 CMOS)

Image Sensor: 1280 × 960 CMOS

Illumination: Direct: White and red LED; Diffused: Blue LED ring; LED 532 nm

Barcode Types:

• 2D: QR Code, PDF417, Micro QR, Data Matrix, AZTEC

• 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, Code11, COOP25, GS1-128 (UCC/EAN-128), ITF-6, ITF-14, AIM128, ISBT128, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, MSI Plessey, Code 39, Plessey, Deutsche 14, Deutsche 12

Resolution: ≥ 3 mil

Depth of Field:

• EAN-13 (13 mil): 25 mm – 160 mm

• Code 39 (5 mil): 40 mm – 100 mm

• Code 39 (20 mil): 35 mm – 210 mm

• Data Matrix (10 mil): 0 mm – 125 mm

• QR Code (20 mil): 20 mm – 180 mm

Scan Angle: Pitch: ±50°; Roll: 360°; Skew: ±50°

Field of View: Horizontal 41°, Vertical 31°

Motion Tolerance: 2 m/s

Minimum Print Contrast: 20%

Interface: USB, RS232, PS/2

Operating Voltage: 5VDC ±5%

Rated Power Consumption: 1600 mW (typical)

Current @ 5VDC: Operating (typical): 320 mA; Maximum: 480 mA

Dimensions (W × D × H): 67 × 86 × 170 mm

Weight: 165 g

Indication: Beep, LED, Vibration

Operating Temperature: -20°C to 50°C

Storage Temperature: -40°C to 70°C

Humidity: 5%–95% (non-condensing)

ESD Protection: ±16 kV (air discharge); ±8 kV (direct discharge)

Drop Resistance: 1.8 m

Protection Rating: IP64

Certifications: FCC; CE; ROHS; IEC62471; BIS; KC
