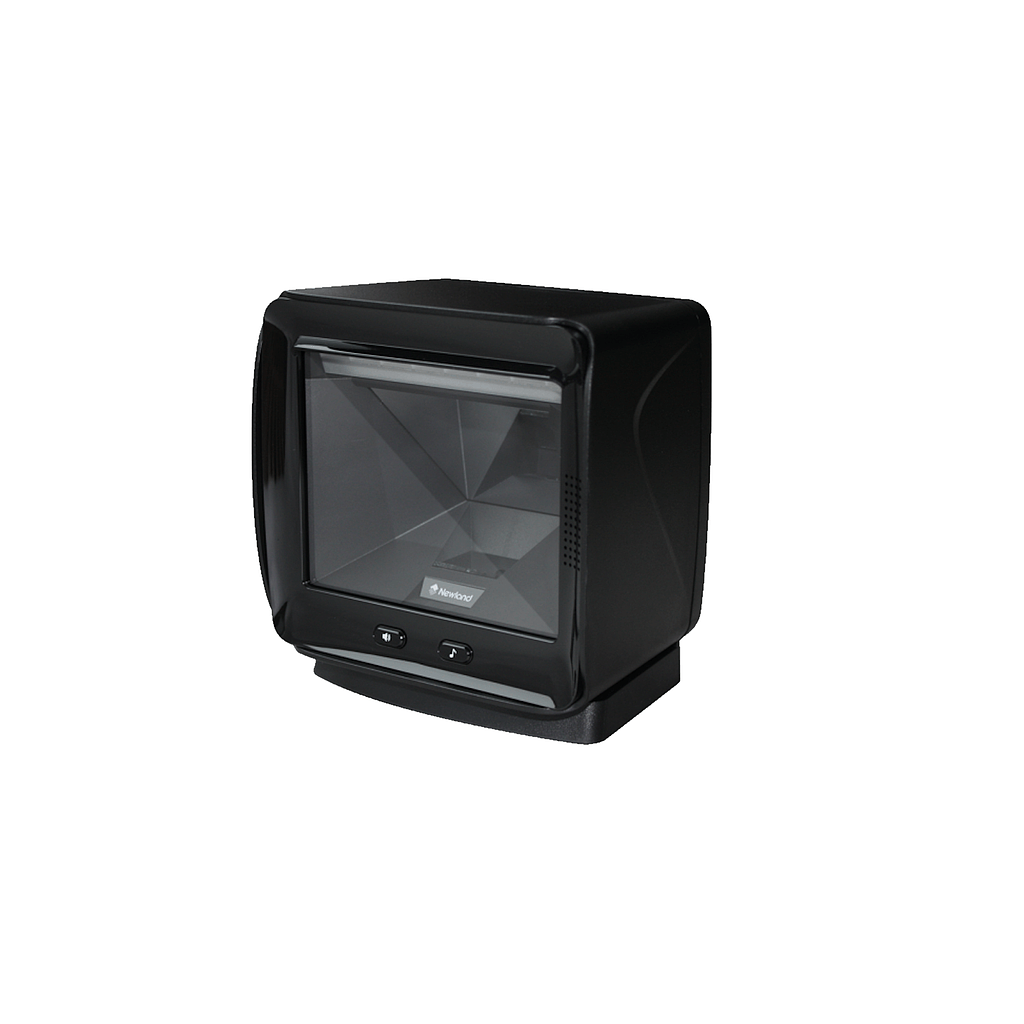

NEWLAND FR80 Desktop Barcode Scanner (0mm-140mm)

Decode Capability: 1D, 2D

Dimension: 151(W)×141.5(H)×97.5(D)mm Without base

Weight: 542g Without base

Sealing: IP52

Interface: USB, RS-232

Image Sensor: 1280 * 1088 CMOS

Resolution: ≥3mil

Typical Depth of Field

EAN-13: 0mm-140mm (13mil)

EAN-13: 50mm-90mm (5mil)

Scan Angle

Roll: 360°, Pitch: ±55°, Skew: ±50°

Min. Symbol Contrast: 15%

Scan Mode: Advanced sense mode

Motion Tolerance: 350cm/s

Field of View: Horizontal 42.4°, Vertical 36°

Rated Power Consumption

Operating: 2W (typical), 2.5W (max.)

Idle: 1.25W

Ambient Light: 0~100,000lux (natural light)
