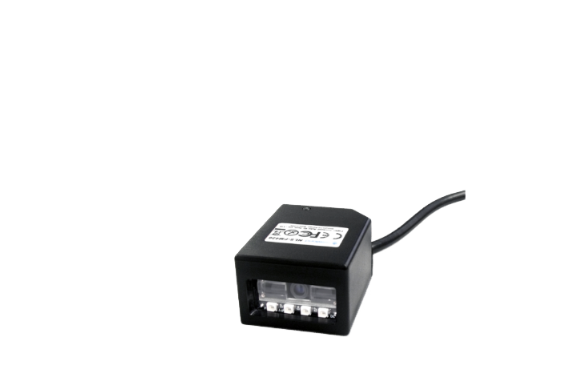

NEWLAND FM100 Fixed Mount Scanner (40°)

Data Capture

1D: All major 1D symbologies, including Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93,UCC/EAN-128, GS1Databar.

Image Sensor: CCD 2500

Illumination: Red LED (622 nm - 628 nm)

Scan Modes: Interval Mode, Sensor Mode, Continuous Mode, Delayed Sensor Mode, Command Triggered Mode

Scan Rate: 300 scans per second

Field of View Horizontal: 40°

Scan Angle Roll: ±30°

Scan Angle Pitch: ±65°

Scan Angle Skew: ±60°

Minimal Print Contrast: 30%

Physical

Current @ 5VDC Operating: 163mA

Current @ 5VDC Standby: 65mA

Dimensions (mm): 49.0 *37.0 * 26.0 mm

Input Voltage: 5VDC ± 5%

Interfaces: RS-232, USB

Material: ABS

Notifications: Beep, LED indicator

Power Supply Input: DC5V, 1.5A

Power Supply Output: AC100~240V, 50~60Hz

Weight: 70g
