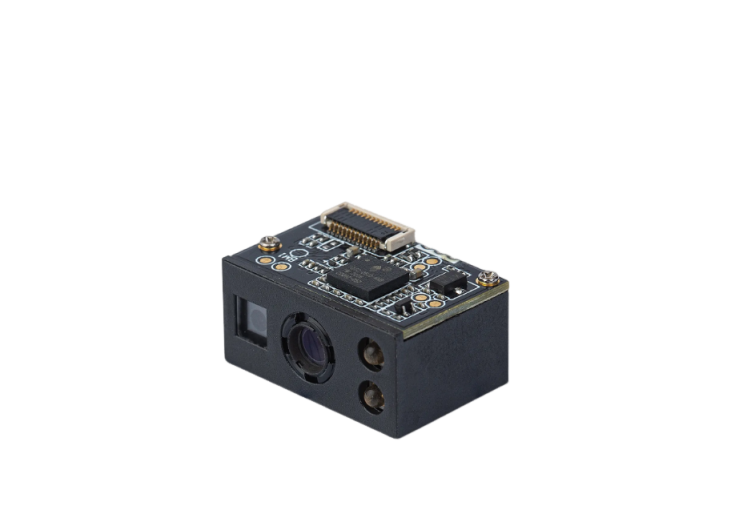

NEWLAND EM3396 Scan Engine (60mm-290mm)

Decode Capability: 1D, 2D

Interface: USB 1.1, TTL-232

Illumination: Red LED

Dimension: 21.5×15.3×11.8mm

Weight: 5g

Image Sensor: 752 * 480 CMOS

Illumination: Red LED 625±10 nm

Symbologies

2D: PDF417, QR Code/ Micro QR, Data Matrix, Aztec

1D: Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN/ISSN, Code 93, UCC/EAN-128, GS1-DataBar, Matrix 2 of 5, Code 11, AIM28, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey

Resolution: ≥3mil

Typical Depth of Field

EAN-13: 60mm-290mm (13mil)

Code 39: 55mm-165mm(5mil)

PDF 417: 55mm-135mm (6.7mil)

Data Matrix: 55mm-130mm (10mil)

QR Code: 45mm-175mm (15mil)

Scan Angle

Roll: 360°, Pitch: ±55°, Skew: ±55°

Min. Symbol Contrast: 20%

Aiming: Laser diode 650 nm

Field of View: Horizontal 36°, Vertical 23°
