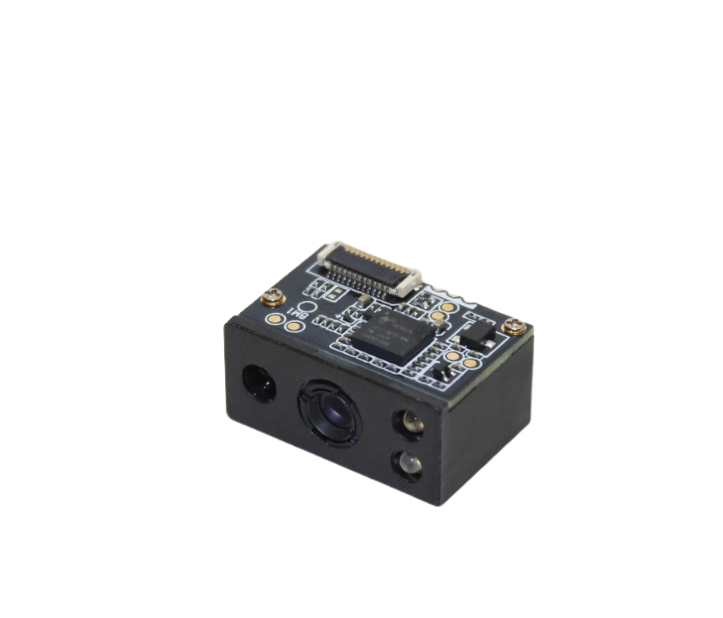

NEWLAND EM3096 Scan Engine

Image Sensor: 752 * 480 CMOS

Illumination: Red LED (625nm±10nm)

Aimer: Red LED (625nm±10nm)

Symbologies

2D PDF 417,Data Matrix (ECC200, ECC000, 050, 080, 100, 140), QR Code, Micro QR, Aztec

1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Code 11, Codabar, Interleaved 2 of 5, ITF6, ITF-14, ISBN, Code 93, MSI-Plessey, UCC/EAN-128, Matrix 2 of 5, Standard 2 of 5, Plessey, GS1 Databar, Industrial 2 of 5, etc.

Resolution: ≥4mil (1D)

Typical Depth of Field

EAN-13: 60mm-290mm (13mil)

Code 39: 55mm-165mm (5mil)

PDF417: 55mm-135mm (6.7mil)

Data Matrix: 55mm-130mm (10mil)

QR Code: 45mm-175mm (15mil)

Min. Symbol Contrast: 20%

Scan Angle: Roll: 360°, Pitch: ±55°, Skew: ±55°

Field of View: Horizontal 36°, Vertical 23°

Interface: TTL-232, USB

Operating Voltage: 3.3VDC ±5%

Rated Power Consumption: 450.5mW (typical)

Current@3.3VDC

Operating 136.5mA (typical), 195mA (max.)

Idle 8.7mA

Sleep <100uA

Dimensions: 21.8(W)×15.3(D)×11.8(H)mm (max.)

Weight: 4g
