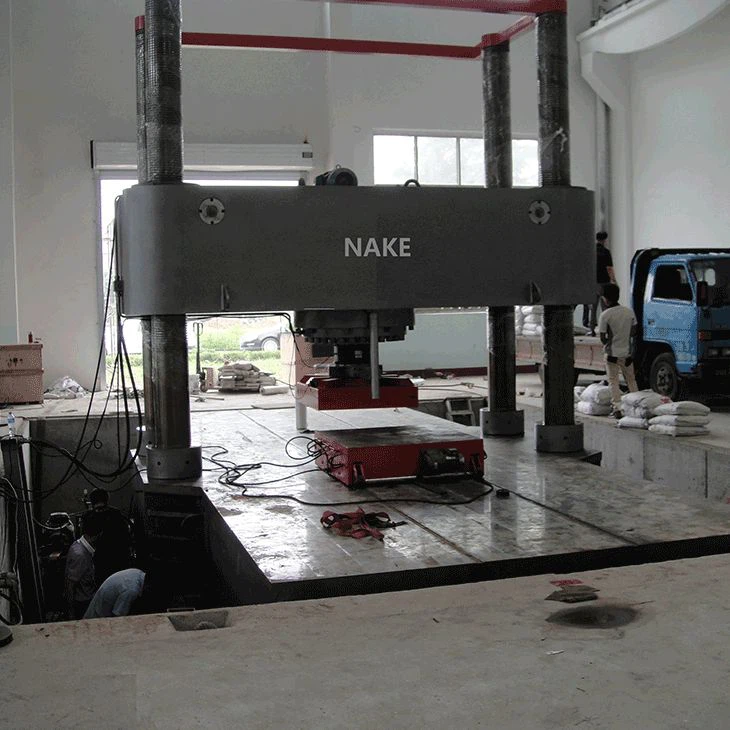

NAKE YAW-5000 Electro-hydraulic Servo Compression Machine (≥5000KN)

Maximum test force: ≥5000KN（500T）

Measuring range: 4%~100%FS

Measurement accuracy: ±1%

Test space: 600x660x500mm

Parallelism of the upper and lower bearing surfaces: 0.3/1000mm

Upper and lower bearing plate hardness:: （55-60）HRC，

Spacing between upper and lower platens:: 50～300mm

Loading speed control accuracy: ±5%

Load holding control accuracy: ±0.3%

Detected anchor plate specifications: Less than 500T

Workbench access mode: Hydraulic automatic control, one key operation

Power supply and power: ～380V±10% 50Hz；3.0kw

Dimensions (length, width and height): ≈1300×1200×2800mm

Net weight of equipment: ≈6.5T
