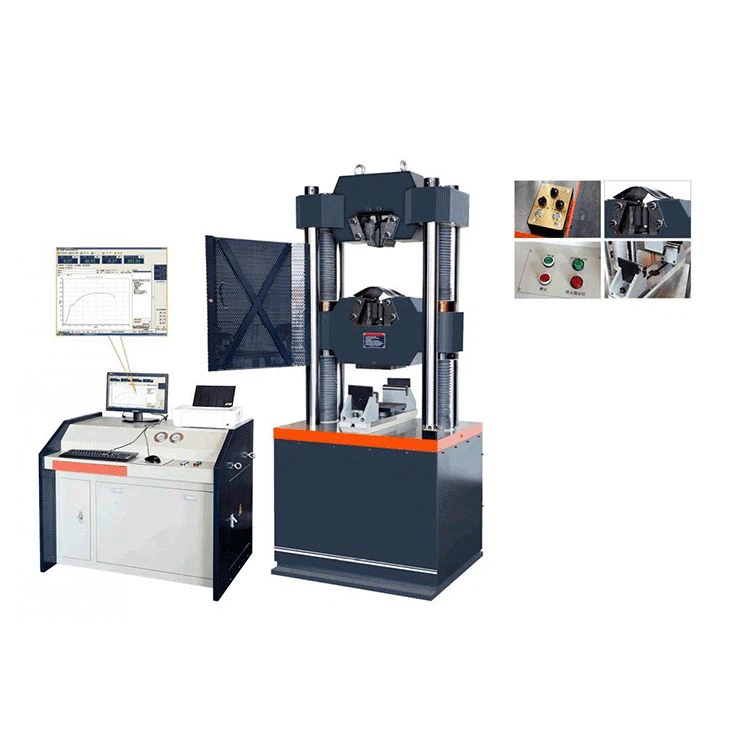

NAKE WEW-1000D Computer Display Hydraulic Universal Testing Machine (1000kN)

Control Way: Manual control, computer display

Number of Screw drivers: 4

Max. Load(KN): 1000

Load Accuracy: ≤± 1%/ ≤± 0.5%

Load Range: 2%~100%FS

Load Resolution: 1/300000

Deformation Measurement Range: 2%~100%FS

Deformation Accuracy: ≤± 1%

Displacement Resolution: 0.01mm

Testing speeds (mm/min): 0.1~70

Adjustable crosshead speed(mm/min): 350

Displacement Error: ≤±0.5%

Max. Piston Stroke(mm): 200/250

Max. Tension Test Space (mm): 950/980

Max. Compression Test Space: 700

Column Effective Spacing(mm): 560/580

Clamping Method: Hydraulic Automatic Clamp

Flat Specimen Clamping Width(mm): 100*100

Compression Plate Size: Φ 160mm

Bending Roller Distance: 450mm

Width Of Bending Rollers: 120mm
