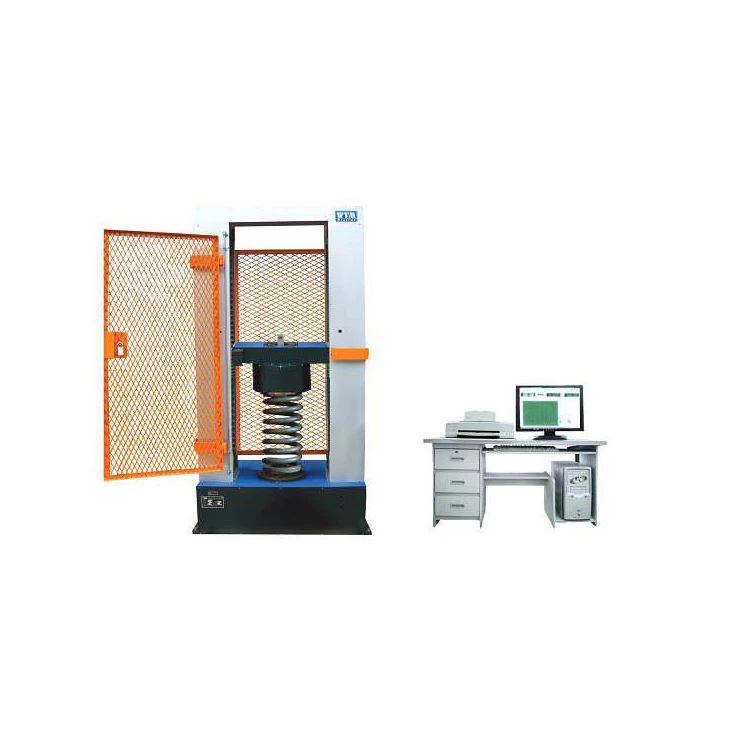

Maximum test force: 1000N
Accurate measurement range of test force: 4% to 100%;
Minimum reading value of test force: 0.01N
The minimum reading value of displacement: 0.01mm;
Displacement accuracy:product-123-18
Loading speed: 0.5mm/min～500mm/min (stepless speed regulation and arbitrary setting within this range);
Maximum distance between two hooks in tensile test: 400mm
The maximum distance between the two hooks in the compression test: 400mm
Maximum stroke of tensile and compression test: 400mm
Diameter of upper and lower platen: Ф100mm
Protection link: position protection of moving beam (limit), protection of test force exceeding 10% of rated load, automatic protection of drive system overcurrent;
Display mode: using computer screen display, Windows operating platform. screen display test force, displacement, beam moving speed, testing machine working state, test force-displacement curve and various pull-down menus, etc.. Man-machine dialogue mode, easy to operate.
Main performance:
△Automatic reset: test force, displacement, reset at any time as needed;
△Automatic calibration: It can automatically realize the accuracy calibration of the test force indicating value;
△Automatic pressure plate alignment: It can automatically calibrate the pressure plate and clear it automatically;
△Control mode: It can realize various control modes such as test force, test speed, displacement, etc., with the following functions:
a) It can set the test force P, and detect the deformation F of the sample;
b) It can set the deformation amount F, and test the test force P of the sample;
c) It can set the test force P and detect the remaining height H of the sample;
d) It can set the remaining height H of the sample, and test the test force P of the sample;
e) During the test, you can set up to ten detection points and spring coefficients, initial tension, adhesion length, and automatic testing;
f) The upper and lower limit tolerances of the force value of the test value can be set. After the test is completed, it can automatically mark whether the measured value is within the tolerance range and automatically judge whether it is qualified or not, and can automatically generate the EXCEL statistical table that you want;
g) The amount of deformation caused by the sensor can be compensated. That is, the deformation caused by the stiffness of the sensor and the whole machine does not affect the accuracy of the displacement.
△ With overload automatic shutdown function;
△Position can be memorized (it can be set arbitrarily);
△ Real-time data storage function;
△The output content of EXCL report can be freely designed
△Auto reset function.
Power supply voltage: AC 220V±10%, 50HZ.
