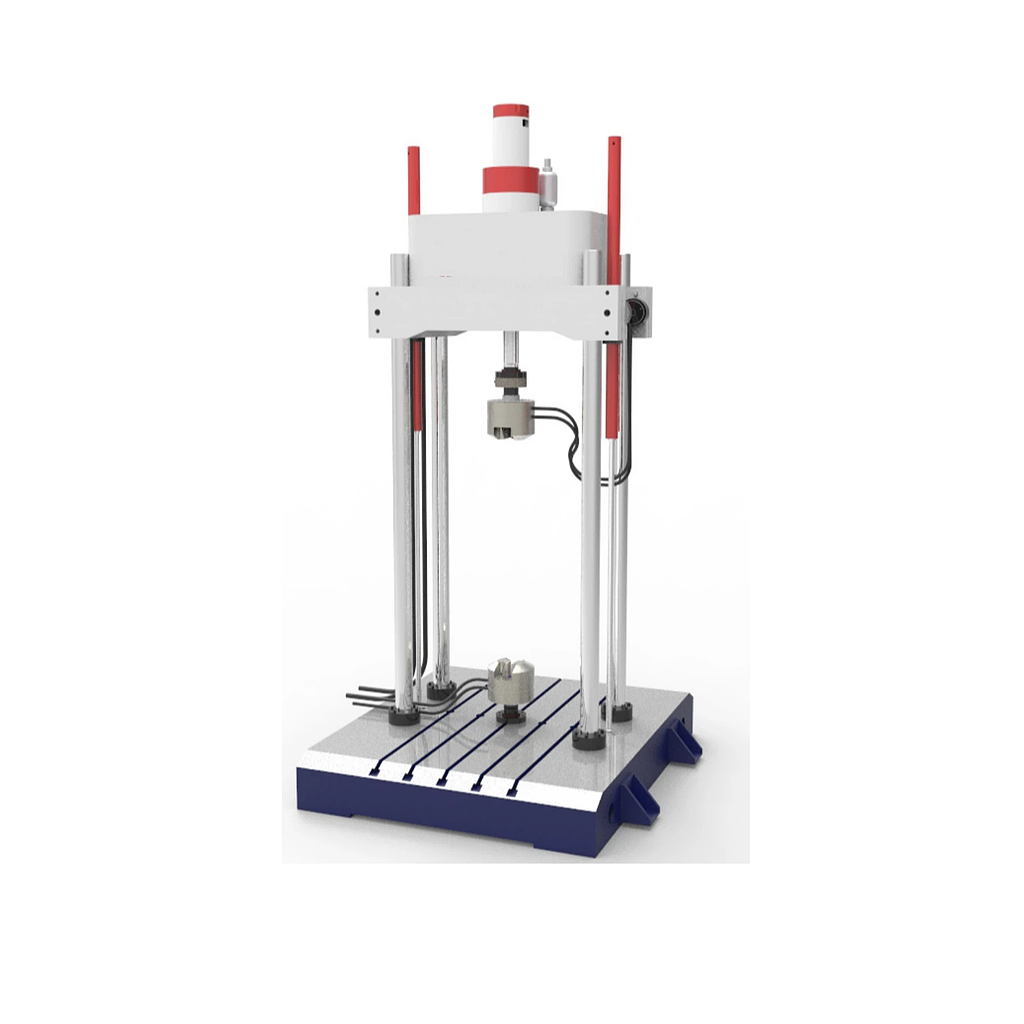

NAKE PWS250H Electro-Hydraulic Servo Fatigue Testing Machine (250 kN)

Maximum test force KN (dynamic and static): 250KN

Load frame: Four columns

Effective width of column mm: 650×500

Test space mm: 1000

Test force measurement range: Dynamic 2%～100%FS

Force accuracy and fluctuation: Better than 1% of the indicated value; Amplitude fluctuation is not greater than ±1%F.S of each gear

Test force resolution: 1/250000 code

Test force indication accuracy: Dynamic ±1%; Static 0.5%

Displacement measurement range: 100mm(±50mm)

Displacement measurement resolution: 0.001mmm

Displacement indication accuracy: Indication accuracy 1% and above within ±0.5%FS

Deformation: Indication accuracy 2% and above, within ±0.5%

Frequency range: Standard machine 0.01-20HZ (customizable up to 50Hz) Static pressure support 0.01-100HZ

Main waveforms: Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller)

Auxiliary tools: Forced flat push clamp, equipped with stretching rod and edge cutting jaws (optional)Compression aid (optional)
