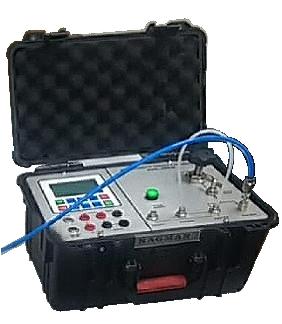

Nagman SAPC-20 Portable Semi-Automatic Pressure Calibrator (-0.85 - 20 bar)

Ranges: -0.85 to 20 bar

Measurement Accuracy: ±0.05% FS

Temperature Compensation: 0 to 50°C (Automatic)

Resolution: Minimum 5 Digits

Display: Large Graphic Display

Pressure Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa

mA input: 50 mA (Active Loop) & 25 mA (Passive Loop) Load Resistance: 800 Ω

Volts input: 0 - 30 V DC

Resolution (mA / V): 0.001

Over Pressure Alarm: 120% FS (Audio / Visual)

Pressure Switch Test: Maximum 5V DC (approx.)

Instrument Casing: Trendy, Elegant ‘Rugged’ Case - Truly Portable

Battery: Rechargeable Battery & Charger

Low Battery Indication: Provided

Pressure generation: Integral / Built-in Electrical Pump

Datasheet
