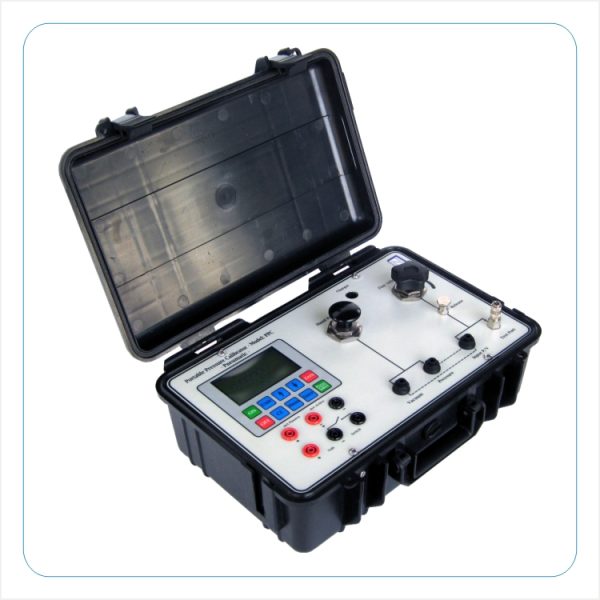

Nagman PPC-P Portable Pneumatic Pressure Calibrator (-0.85~20 Bar, ±0.05% F.S.)

Ranges: -0.85 to 2 / 7 / 10 / 20 Bar

Accuracy: ±0.05% F.S.

Temperature: Compensation 0 to 50°C (Automatic)

Resolution: Minimum 5 digits

Display: Large Graphic Display

Engineering Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa

mA Input:

+ 50mA (Active Loop) & 25mA (Passive Loop)

+ Load Resistance : 800Ω

Volt Input: 0 to 30V DC

Resolution (mA / V): 0.001

Pressure Switch Test: Maximum 5V DC (approx.)

Over Pressure Alarm: 120% FS (Audio / Visual)

Pressure generation: Integral / Built-in Pump & Fine Adjustment Vernier Assembly

Battery: Rechargeable Battery & Charger

Low Battery Indication: Provided

Instrument Dimension:

+ 330 x 235 x 125 mm (L x B x H) : (2 / 7 / 10 Bar)

+ 330 x 235 x 200 mm (L x B x H) : (20 Bar)

Instrument Weight:

+ 4 Kg. (2 / 7 / 10 Bar)

+ 6 Kg. (20 Bar

-Standard Delivery:

Digital Pressure Calibrator

Set of Adaptors (BSP & NPT)

Test Leads & Seals Kit

Hose with End Fitting

External Battery Charger

Traceable Calibration Certificate

Instruction Manual

-Optionals:

"Calpress” Calibration Software

RS-232 Computer Interface

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
