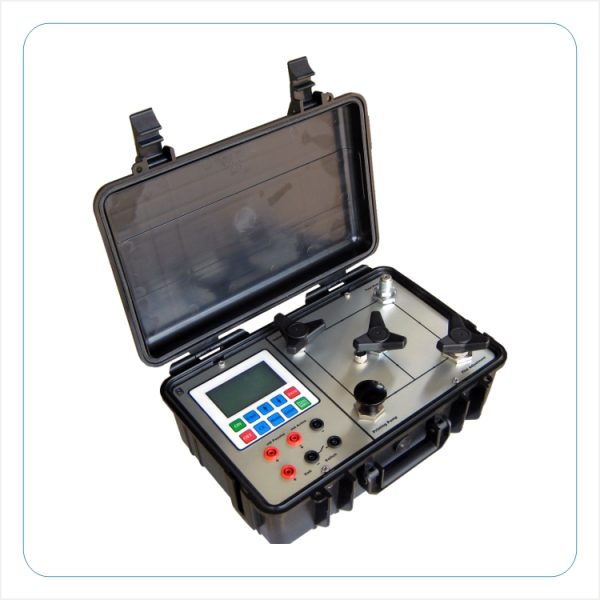

Nagman PPC-H Portable Hydraulic Pressure Calibrator (0~20 /400 Bar, ±0.05%F.S)

Ranges: 0 to 200 / 400 Bar

Accuracy: ±0.05% F.S.

Temperature Compensation: 0 to 50°C (Automatic)

Resolution: Minimum 5 digits

Display: Large Graphic Display

Engineering Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa

mA Input:

+ 50mA (Active Loop) & 25mA (Passive Loop)

+ Load Resistance : 800Ω

Volt Input: 0 to 30V DC

Resolution (mA / V): 0.001

Pressure Switch Test: Maximum 5V DC (approx.)

Medium: Oil (Water : optional) #

Over Pressure Alarm: 120% FS (Audio / Visual)

Battery: Rechargeable Battery & Charger

Low Battery Indication: Provided

Instrument Dimension: 330 x 235 x 125 mm (L x B x H)

Instrument Weight: 6 Kg

-Standard Delivery:

Digital Pressure Calibrator

Set of Adaptors (BSP & NPT)

Test Leads & Seals Kit

Hydraulic Hose with End Fitting (1 Meter)

Oil : 250 ml

External Battery Charger

Traceable Calibration Certificate

Instruction Manual

-Optionals:

"Calpress” Calibration Software

RS-232 Computer Interface

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory

Water Operated Model #
