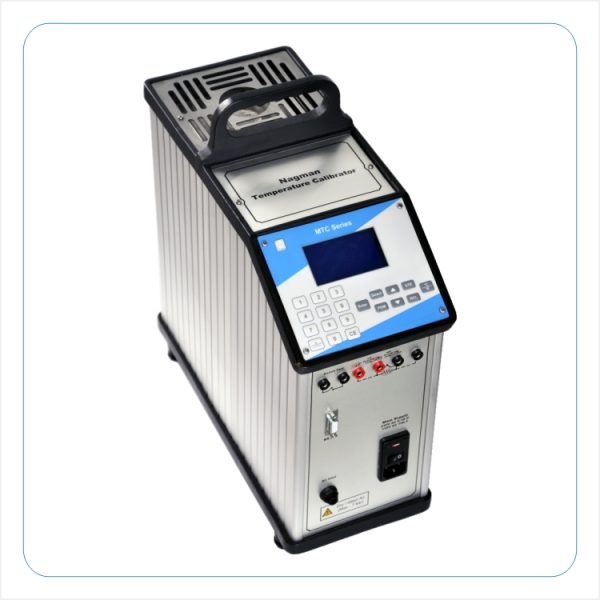

Nagman MTC 1200 Universal Dry Block High Temperature Calibrator (300°C~1200°C, 1°C)

Range: 300°C to 1200°C

Resolution: 1°C

Accuracy: ±2°C

Stability: ±0.5°C

Stabilisation Time: 15 Minutes

Temperature Readout: °C / °F Switcheable

Well Diameter: 26 mm

Immersion Depth: 105 mm

Dry Block Material: Inconel

Heating Time (Ambient to max.): 60 Minutes approx.

Cooling Time (to min.): 45 Minutes approx. (with Forced Air Cooling) **

Switch Test facility: Provided

Thermowell Dia: 8 mm

Housing / Mounting: Bench-top

Power Supply / Consumption: 230V AC, 50 Hz / 115V AC, 60 Hz – 700 W –Selectable

Instrument Dimensions (L x D x H): 160 x 365 x 450 mm

Instrument Weight (approx.): 15 Kg.

Measurement Capability:

+ Thermocouples: ISA Types J, K, R, S, N

+ RTD: Pt100 IEC Std.

+ mA: 0 to 25 mA

+ mV: 0 to 100 / 1000 mV

+ Volt: 0 to 10 V

+ Resistance: 0 to 500Ω / 3.5 KΩ

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Thermowell of 8 mm Dia

Tool for Insertion Tubes

Spare Fuses

1/4” BSP (F) Hose Adaptor with 6 mm Hose (1.5 Meter Length)

RS-232 Computer Interface

“MTCCal” Calibration Software

Traceable Calibration Certificate

Instruction Manual

Carrying Case

-Optionals:

Additional Thermowells / Insertion Tubes :Single hole

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory

•    Advanced – Micro-controller based Technology

•    128 x 64 Graphic Display

•    Touch Membrane Keypad

•    RS-232 Interface & Calibration Software

•    High Accuracy, Resolution & Stability
