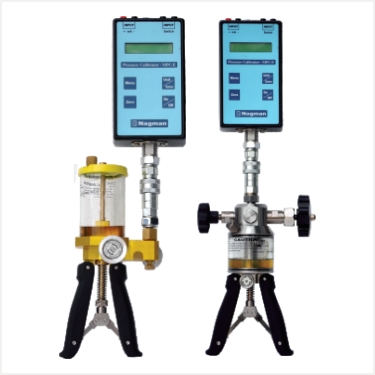

Nagman MPC-H Hydraulic Pressure Calibrator (700 Bar, ±0.05% F.S.)

Ranges: 0 to 70 / 100 / 200 / 350 / 600 / 700 Bar

Accuracy: ±0.05% F.S.

Resolution: Minimum 5 digits

Temperature Compensation: 0 to 50°C (Automatic)

Display: 2 line, 16 characters LCD (Alpha-Numeric)

Engineering Units: Kg/cm2, Bar, mBar, PSI, mH2O, mmH2O, cmH2O, inH2O, ftH2O, mmHg, inHg, Atm, Mpa, Kpa, Pa

mA Input: 50 mA (Active Loop) & 25 mA (Passive); Load Resistance : 800Ω

Volt Input: 0 to 30V DC

Resolution (mA / V): 0.01

Pressure Switch Test: Maximum 5V DC (approx.)

Over Pressure Alarm: 120% FS (Audio / Visual)

Battery Type & Life: 9 Volts; Approx. 12 Hours

Low Battery Indication: Provided

Instrument Dimension/Weight: 480 x 280 x 160 mm (L x D x H)/7 Kg

-Standard Delivery:

Pressure Indicator with matching Hand Pump

Set of Adaptors (BSP & NPT)

Test Leads & Seals Kit

Hose with End Fittings

9V Alkaline Battery

Carrying Case

Traceable Calibration Certificate

Instruction Manual

-Optionals:

“Calpress” Calibration Software

RS-232 Computer Interface

Rechargeable Battery & External Charger

Calibration Certificate from NABL Accredited – as per ISO/IEC 17025:2005 Laboratory
