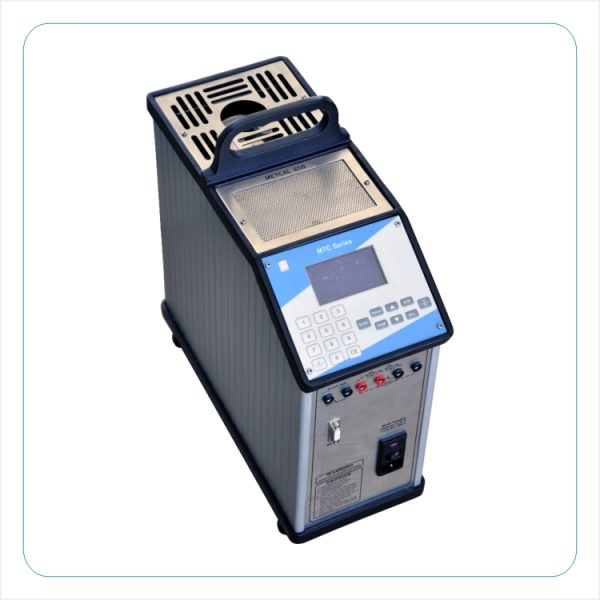

Nagman METCAL 650 Metrological Medium Temperature Dry Block Calibrator (50°C~650°C, 0.01°C)

Range: 50°C to 650°C

Resolution: 0.01°C

Accuracy: ±0.4°C

Stability: ±0.04°C

Stabilisation Time: 15 Minutes

Temperature Readout: °C / °F Switcheable

Axial Uniformity (40 mm): ±0.4°C

Radial Uniformity: ±0.04°C

Well Diameter: 30 mm

Immersion Depth: 150 mm

Heating Time (50 to 650°C): 36 Minutes approx.

Cooling Time (650 to 100°C): 75 Minutes approx.

Switch Test facility: Provided

Interchangeable Thermowells: Multihole to suit 2 x ¼” & 1 x ½” Probes. Other Sizes available as optional

Housing / Mounting: Bench-top

Power Supply / Consumption: 230V AC, 50 Hz & 115V AC, 60 Hz – 1400W – Selectable

Instrument Dimensions (L x D x H): 160 x 365 x 450 mm

Instrument Weight (approx.): 11 Kg.

Measurement Capability:

+ Thermocouples: ISA Types J, K, R, S, N

+ RTD:Pt100 IEC Std.

+ mA:0 to 25 mA

+ mV:0 to 100 / 1000 mV

+ Volt:0 to 10 V

+ Resistance:0 to 500Ω / 3.5 KΩ

-Standard Delivery:

Basic Instrument

Test Leads

Mains Cable

Multihole Insertion Tubes (to suit 2 x ¼“ & 1 x ½“ probes)

Tool for Insertion Tubes

Spare Fuses

RS-232 Computer Interface & “METCAL” Calibration Software

Calibration Certificate from NABL Accredited– as per ISO/IEC 17025:2005 Laboratory

Instruction Manual

Carrying Case

-Optionals:

For additional Thermowells, / InsertionTubes & Multihole

•    Advanced – Micro-controller based Technology

•    Large Graphic Display (Multi-information Display)

•    Touch Membrane Keypad

•    RS-232 Interface & Calibration Software

•    Count down timer (Shows when unit is stable)

•    Stability Indicator
