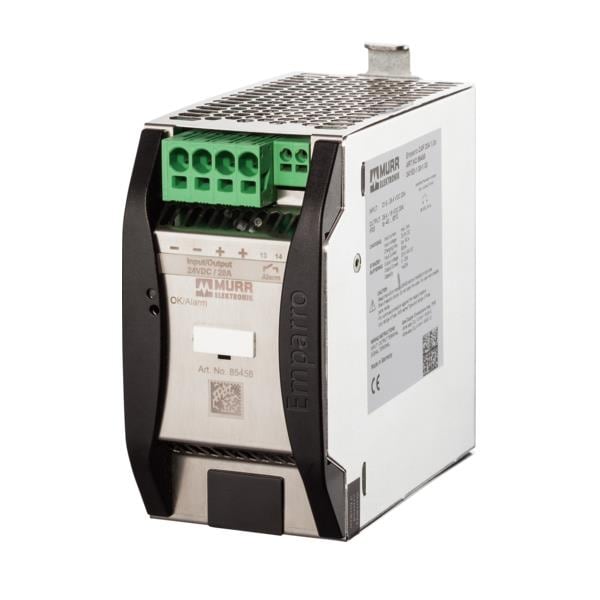

Murrelektronik 85458 Linear Supplies EMPARRO CAP BUFFER MODULE, IN: 24VDC OUT: 24VDC/20A for max. 1A/40s

Width: 65 mm (2.559 in)

Height: 123 mm (4.843 in)

Length: 138 mm (5.433 in)

Industry: Industrial

Dimensions: 123 mm x 65 mm x 138 mm

Input Type: 1-Phase / Single Phase

Unit Weight: 848 g

Input Voltage: 21.6 VDC to 26.4 VDC

Mounting Style: DIN Rail Mount

Number of Outputs: 1 Output

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 20 A

Output Voltage-Channel 1: 24 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 40 C
