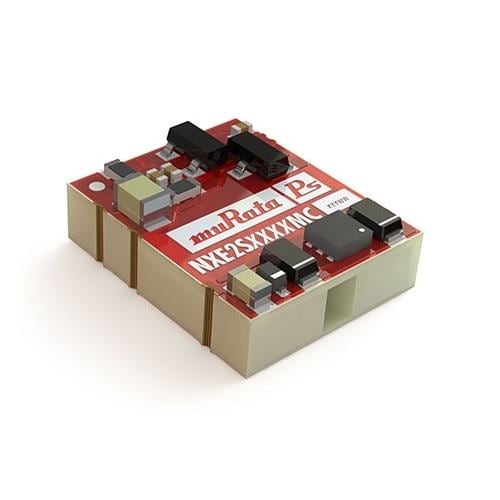

Murata Power Solutions NXE2S0505MC-R13 Isolated DC/DC SM 2W 5-5V SINGLE 3KV
Manufacturer: Murata Power Solutions Model: NXE2S0505MC-R13 - Contact
Width: 10.41 mm
Height: 4.41 mm
Length: 12.7 mm
Industry: Medical, Industrial
Efficiency: 72 %
Application: Industrial, medical
Unit Weight: 2 g
Output Power: 2 W
Input Voltage: 4.5 V to 5.5 V
Cooling Method: Convection
Mounting Style: SMD/SMT
Mechanical Style: Isolated
Isolation Voltage: 3 kV
Number of Outputs: 1 Output
Moisture Sensitive: Yes
Input Voltage - Max: 5.5 V
Input Voltage - Min: 4.5 V
Input Voltage, Nominal: 5 V
Output Current-Channel 1: 400 mA
Output Voltage-Channel 1: 5 V
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
