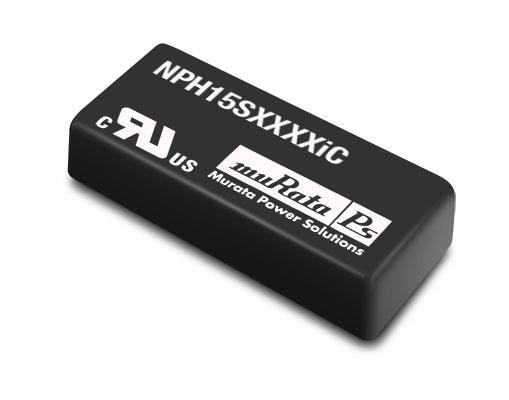

Murata Power Solutions NPH15S2405IC Isolated 15W 24V-5V DIP DC/DC

Width: 25 mm (0.984 in)

Height: 10 mm (0.394 in)

Length: 50 mm (1.969 in)

Industry: Industrial

Application: Industrial

Unit Weight: 36 g

Output Power: 15 W

REACH - SVHC: Details

Input Voltage: 18 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 3 A

Output Voltage-Channel 1: 5.1 V

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 40 C
