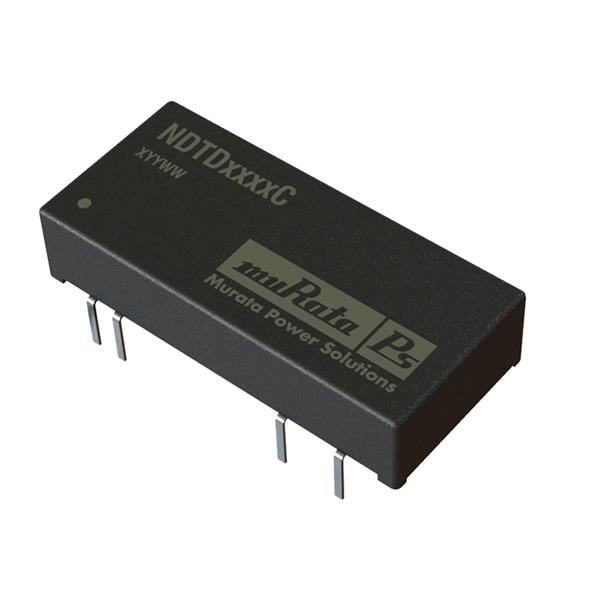

Murata Power Solutions NDTD2415C Isolated 3W 24V-15V DIP24 DC/DC

Width: 14.66 mm (0.577 in)

Height: 7 mm (0.276 in)

Length: 32.26 mm (1.27 in)

Industry: Industrial

Dimensions: 32.26 mm x 14.66 mm x 7 mm

Application: Industrial

Unit Weight: 6 g

Output Power: 3 W

Input Voltage: 18 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 1 kV

Number of Outputs: 2 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 100 mA

Output Current-Channel 2: 100 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
