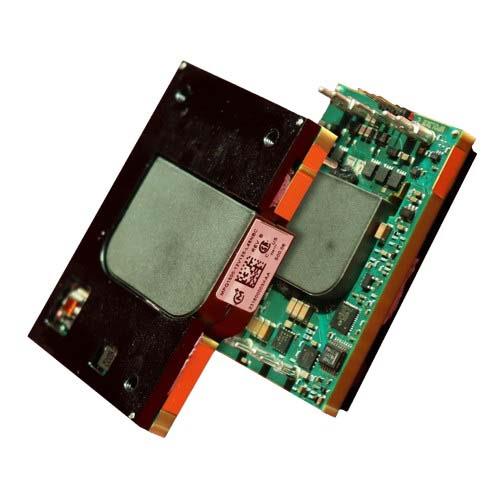

Murata Power Solutions MPQ1500-12V125-L48NBC Isolated Quarter Brick 12Vout a. 125A 40-60vin Range Negative Logic Baseplate NO-PMBus

Width: 36.83 mm (1.45 in)

Height: 13.6 mm (0.535 in)

Length: 58.42 mm (2.3 in)

Industry: Industrial

Dimensions: 58.42 mm x 36.83 mm x 13.6 mm

Output Power: 1.5 kW

Input Voltage: 40 V to 60 V

Mounting Style: Through Hole

Isolation Voltage: 500 V

Number of Outputs: 1 Output

Input Voltage - Max: 60 V

Input Voltage - Min: 40 V

Output Current-Channel 1: 125 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
