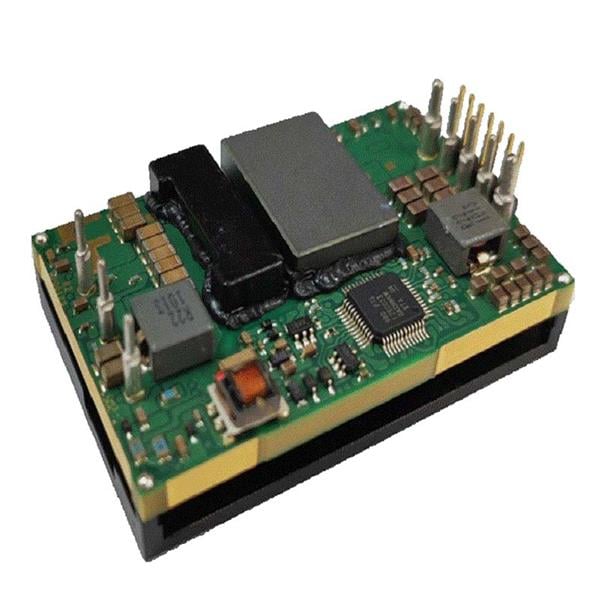

Murata Power Solutions MPQ0125V3NBMC Isolated DC-DC Converters Quarter Brick 12Vout a. 25A 18-75Vin Range Negative Logic Baseplate PMBus

Width: 36.8 mm (1.449 in)

Height: 14.4 mm (0.567 in)

Length: 58.4 mm (2.299 in)

Industry: Industrial

Dimensions: 58.4 mm x 36.8 mm x 14.4 mm

Output Power: 300 W

Input Voltage: 18 VDC to 75 VDC

Mounting Style: Through Hole

Isolation Voltage: 2.25 kV

Number of Outputs: 1 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 48 V

Output Current-Channel 1: 25 A

Output Voltage-Channel 1: 12 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
