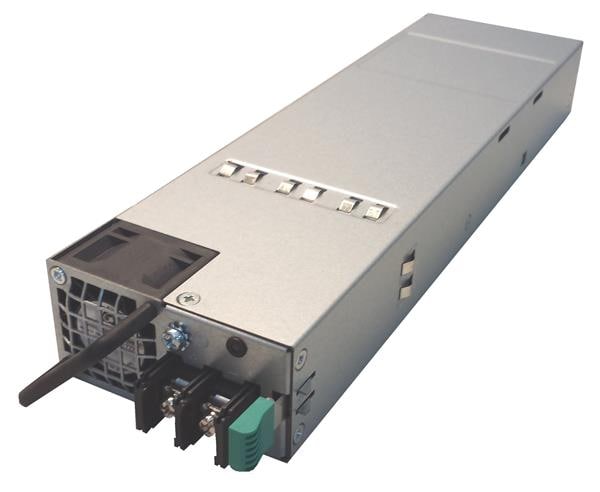

Murata Power Solutions D1U3CS-D-1600-12-HC4EC Rackmount Power Supplies

Width: 3.2 in

Height: 1.57 in

Length: 11 in

Efficiency: 90 %

Unit Weight: 1.3 kg

Output Power: 1.6 kW

Input Voltage: - 48 VDC to - 60 VDC

Cooling Method: Air-Cooled

Mounting Style: Rack

Mechanical Style: Hot-Swap

Isolation Voltage: 1 kVDC

Number of Outputs: 1 Output

Input Voltage - Max: - 72 VDC

Input Voltage - Min: - 40 VDC

Input Voltage, Nominal: - 48 VDC, - 60 VDC

Output Current-Channel 1: 133 A

Output Voltage-Channel 1: 12 V

Operating Temperature Range: 0 C to + 50 C

Maximum Operating Temperature: + 50 C

Minimum Operating Temperature: 0 C
