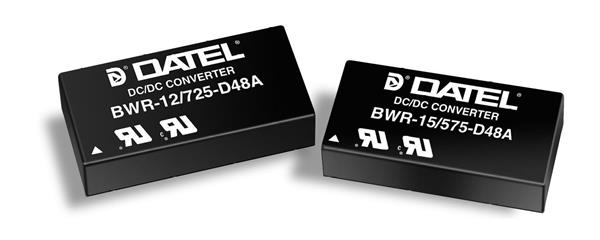

Murata Power Solutions BWR-15/575-D24A-C Isolated 17W 18-36VIN +-15VOUT DC/DC

Width: 25.4 mm (1 in)

Height: 11.81 mm (0.465 in)

Length: 50.8 mm (2 in)

Industry: Industrial

Dimensions: 50.8 mm x 25.4 mm x 9.53 mm

Unit Weight: 34 g

Output Power: 17 W

REACH - SVHC: Details

Input Voltage: 18 V to 36 V

Mounting Style: Through Hole

Isolation Voltage: 1.5 kV

Number of Outputs: 2 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 18 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 575 mA

Output Current-Channel 2: 575 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
