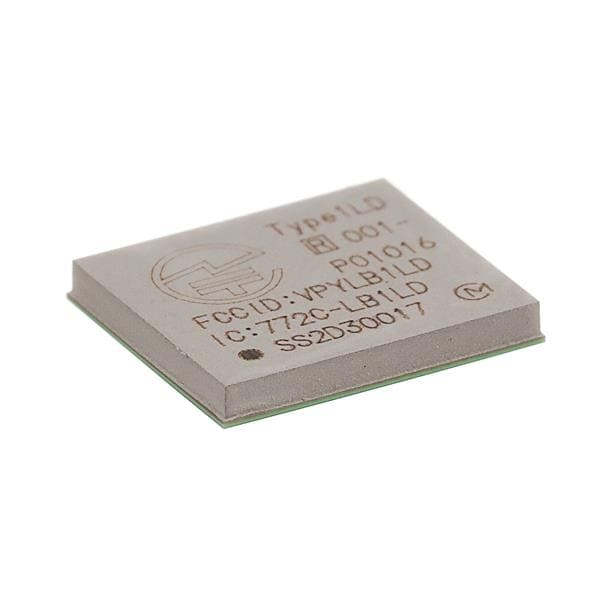

Murata Electronics LBEE5PA1LD-005 Multiprotocol Modules Type 1LD Shielded ultra-small dual bandWi-Fi 11a/b/g/n/ac Bluetooth 4.2

Data Rate: 11 Mb/s, 54 Mb/s, 65 Mb/s

Frequency: 2.4 GHz

Dimensions: 8.9 mm x 7.8 mm x 1.2 mm

Output Power: 17 dBm

Qualification: AWS

Interface Type: GPIO, I2C, SPI, UART

Moisture Sensitive: Yes

Modulation Technique: CCK, DSSS, OFDM

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.8 V

Antenna Connector Type: External

Operating Supply Voltage: 3.3 V

Protocol - WiFi - 802.11: 802.11 a/b/g/n/ac

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth 4.2
