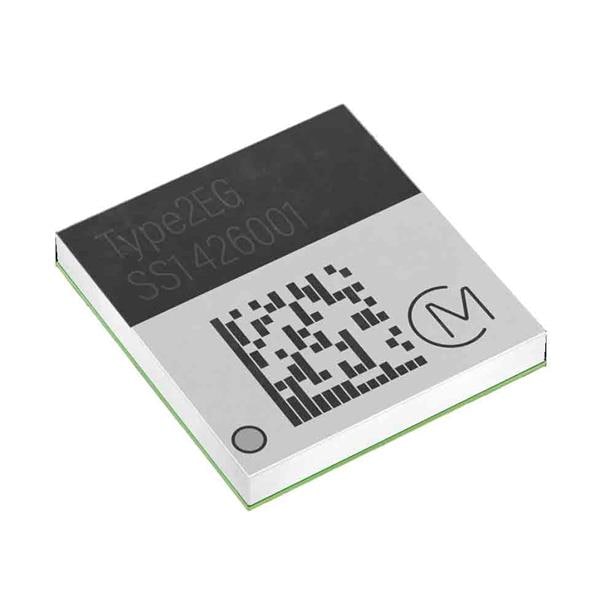

Murata Electronics LBCA1HN2EG-917 Bluetooth Modules Type 2EG ultra-low pwr secure BT 5.2 connected IoT edge ind medical app

Core: ARM Cortex-M33

Width: 7 mm

Height: 1 mm

Length: 7.4 mm

Data Rate: 1 Mb/s

Shielding: Shielded

Dimensions: 7.4 mm x 7 mm x 1 mm

Output Power: 6 dBm

Interface Type: SPI, UART

Mounting Style: PCB Mount

Frequency Range: 2.402 GHz to 2.48 GHz

Moisture Sensitive: Yes

Receiver Sensitivity: - 96 dBm

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 1.2 V

Antenna Connector Type: PCB Antenna

Supply Current Receiving: 5.8 mA

Supply Current Transmitting: 24.1 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
