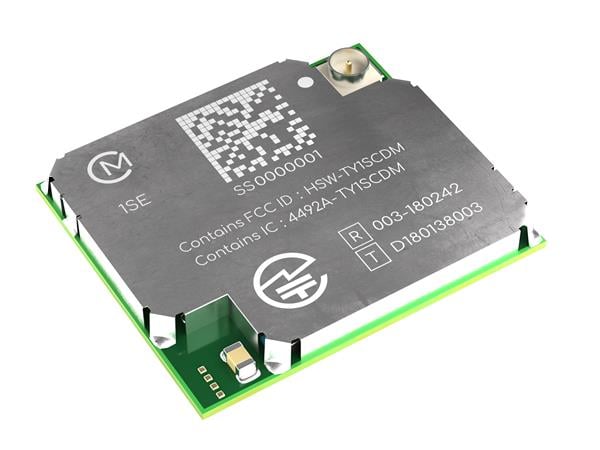

Murata Electronics LBAD0ZZ1SE-743 LTE CAT M1/NBIoT Module BLE Type 1SE End Device

Dimensions: 18 mm x 15.4 mm x 1.8 mm

Output Power: 23 dBm

Interface Type: GPIO, I2C, PWM, SPI, UART

Mounting Style: SMD/SMT

Moisture Sensitive: Yes

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: u.FL

Protocol - GPS, GLONASS: GNSS, GLONASS, GPS

Operating Supply Voltage: 3.3 V to 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: NBIoT, LTE
