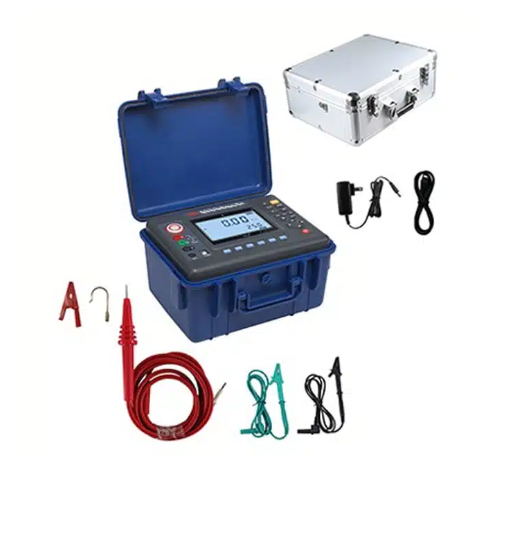

Test Function: Insulation Resistance Test - Voltage Test
Rated Voltage: 100V, 250V, 500V, 1000V, 2500V, 5000V Accuracy: ±3%+5
Measurement Voltage: Rated Voltage x (1+10%)
Insulation Resistance Range: 0.01MΩ~2000GΩ Accuracy: ±3%+5
Insulation Resistance Resolution: 0.01MΩ
DC Voltage Range: 0~1000V Resolution: 0.1V
AC Voltage Range: 0~750V Resolution: 0.1V
Output Short Circuit Current: ≥5mA(5000V)
Absorption Rate and Polarization Index Measurement: Yes
USB Interface :Software monitoring, storage data via USB interface can be uploaded to computer, save the print
Power Supply: 12V Rechargeable battery
Insulation Resistance: ≥50MΩ (Between measuring line and shell)
Compliant with Safety Regulations: IEC61010-1, IEC1010-2-31, IEC61557-1,5, IEC60529(IP54), Pollution grade 2, CAT III 300V
