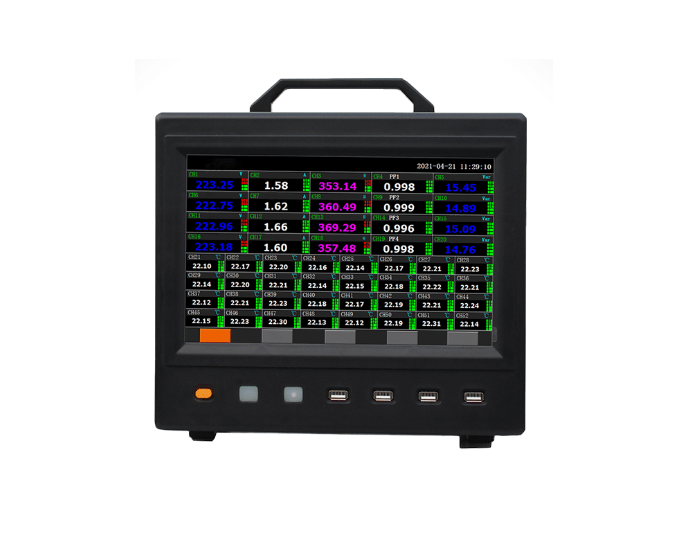

MultiTech MTJ-9200B Multi-channel Temperature Power Recorder (1P, -200℃~1999℃)

Wiring Method : Single-phase two-wire

Number of Power Meter Channel: 4  (increase channels need to be customized)

Number of Temperature Channels : 8 (increase channels need to be customized)

Temperature Measurement Range : -200°C~1999°C Thermocouple: J/K/T/E/S/N/B type , PT100

Measurement Items: Voltage V, Current A, Active Power W, Temperature °C

Curve (History,Real Time) Real-Time): Temperature / Voltage / Current / Power

Voltage Range: 10V,100V,250V,400V,500VAC

Current Range: 10mA,100mA,1A,5A,10A,20A ( Perforation type greater than 5A, perforation aperture 7.5mm)

Power Range: 0.01W-12kW

Frequency Range: 40-400Hz

Measurement Speed: 3 times/sec.

Voltage Input Impedance :2kΩ/V (That is, if input is 250V, voltage impedance is 500kΩ’dur.)
