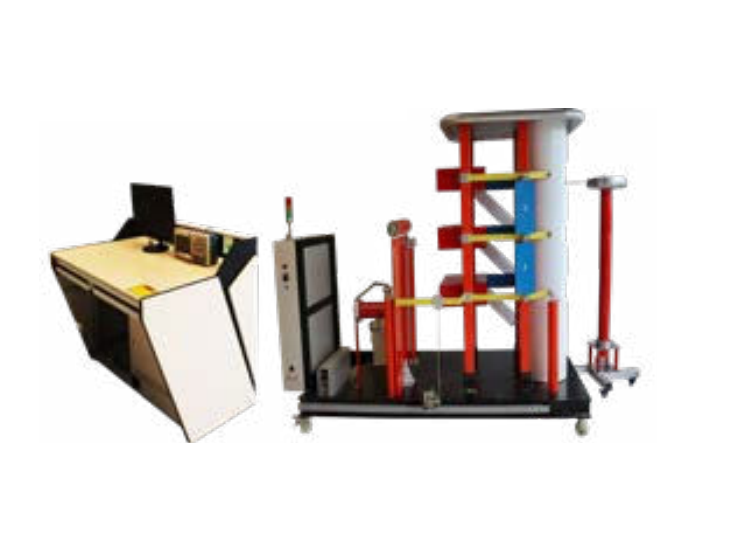

Impulse Generator – Basic Technical Parameters
Lightning Rated Voltage: ± 300 kV
Rated Capacity: 30 kJ
Level Electric Capacity: 2 uF, 100 kV (HRMWF–2×50kV–4.0μF)
Level Voltage: ±100kV (DC) (2 x 50 kV)
Progression / Level Energy: 3/10kJ
Output Wave Shapes: ±1.2/50μs standard lightning impulse voltage full wave
Wave Time: 1.2±%30μs
Wave Rear Time: 50±%20μs
Over Swing: <%5
Efficiency: >%90
Rectification charging source (and impact main body integration)
Rated Voltage: Un=100kVDC
Nominal Current Nominal Current: In=50mA (Under rated voltage)
Voltage Control Voltage Control: % 0~100 Un
Polarity Inversion: The manual transformation high voltage direction
Input Voltage : 220V Single-Phase Voltage
Supply Frequency : 50/60 H
Power Source Consuption Power Source Consuption: Approximately 5kVA
Dimensions(mm): 1000 × 600 × 110
Damping Voltage Divider
Rated Voltage: 300kV
Fixed Electric Capacity : 500pF
Electric Capacity Pitch Number :1
Each Electric Capacity: 500pF(HRMWF300-500 Pulse capacitor)
Partial Response Time : <100ns
Over swing is < 10 % (Satisfies the IEC 60060-1 & IEC 60060-2 standard)
Di erential Voltage Ratio: 1000
Di erential Voltage Uncertainty :<%1
Dimensions (mm): 1000 × 1200
Measurement equipment
Peak to Peak Value :MLT (IPM) 23 impulse peak voltmeter
Input Range: 100V~1600V
Uncertainty: <%1
Scope: Digital osilloscope
Highest Sampling Rate: 1.0GS/s
Bandwidth: >100MHz, resolution 8-bit
Record Length : 2.5 kbyte, 2 channel
Waveform Analysis: Computer-controlled system
Impulse Measurement Special-Purpose Software Package
