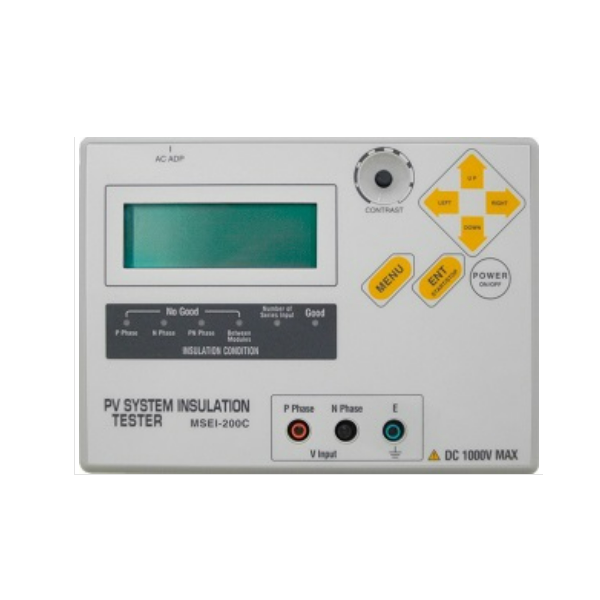

MULTI MSEI-200C Insulation Resistance Tester (DC0.01～999.9V, 0.01～19.99MΩ)

Measuring Function: Generated Voltage; Insulation Resistance (between P phase/N phase/PN phase/Module)

Measuring Range

Voltage: DC0.01～999.9V

Resistance：0.01～19.99MΩ

Accuracy (Voltage): ±1%rdg±10dgt

Accuracy (Resistance):

1～10MΩ：±5%rdg

10.01～19.99MΩ：±10%rdg

Measuring Interval: 30/180/300/600/900sec

Circuit Voltage: DC1000V PV Generation Circuit

Operation Temp: -10℃～+60℃ <85%RH without condensation

Power Supply: AA alkaline battery LR-6 x 4 or AC adaptor (option)

Dimension/Weight: W190×H140×D42mm approx.600g

Accessories:

Voltage input cable ×1set

Carrying case ×1

AA alkaline battery ×4

Instruction manual ×1
