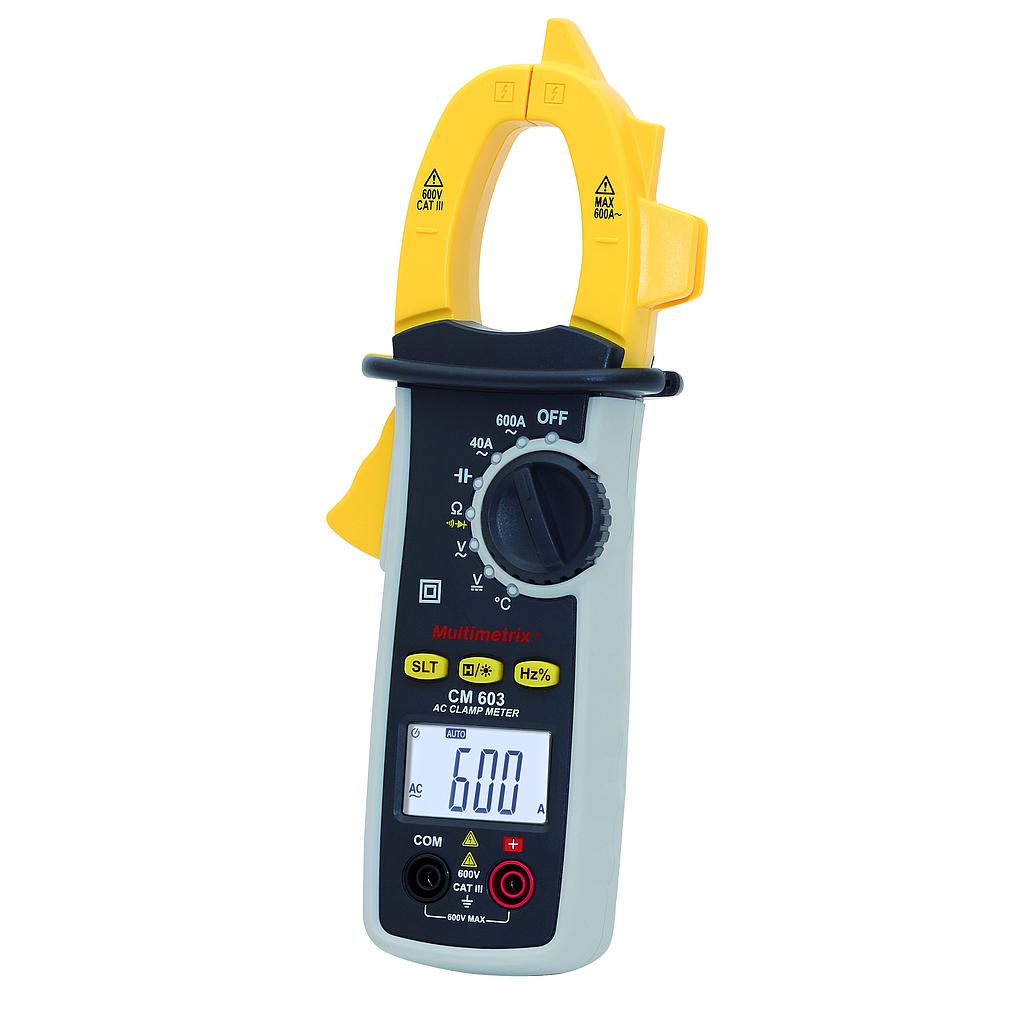

Multimetrix CM 603 Clamp Multimeter (AC 600A)

Display: 4,000 counts with backlighting
Type of measurement: AVG
IAC
Ranges: 40 A / 400 A / 600 A (45 Hz …65 Hz)
Best accuracy: 2.5 % of reading + 5 cts
Best resolution: 10 mA
VDC
Ranges: 4 V / 40 V / 400 V / 600 V
Best accuracy: 0.8 % of reading + 3 cts
Best resolution: 1 mV
VAC
Ranges: 4 V / 40 V / 400 V / 600 V (40 Hz - 400 Hz)
Best accuracy: 1 % of reading + 5 cts
Best resolution: 1 mV
Resistance
Ranges: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
Best accuracy: 1 % of reading + 5 cts
Best resolution: 0.1 Ω
Continuity (with buzzer): Yes
Diode test: Yes
Frequency (on V): 100 Hz / 1 kHz / 10 kHz
Duty cycle: 0.1 .. 99.9 %
Capacitance: 10 nF / 100 nF / 1 μF / 10 μF / 100 μF / 1 mF / 10 mF
Temperature: -20 °C … +1,000 °C (K thermocouple)
Range selection: Automatic
Other specifications: Torch function, Data HOLD,deactivatable automatic power-off
Safety: 600 V CAT III as per IEC 61010-1,IEC 61010-2-032, IEC 61010-2-033
Clamping diameter: 26 mm
Dimensions / weight : 206 x 79 x 43 mm / 270 g
Accessories supplied:
One set of red/black cables with test probes,
3 x 1.5 V AAA / LR03 batteries, 1 K thermocouple
and a bag.

Datasheet
