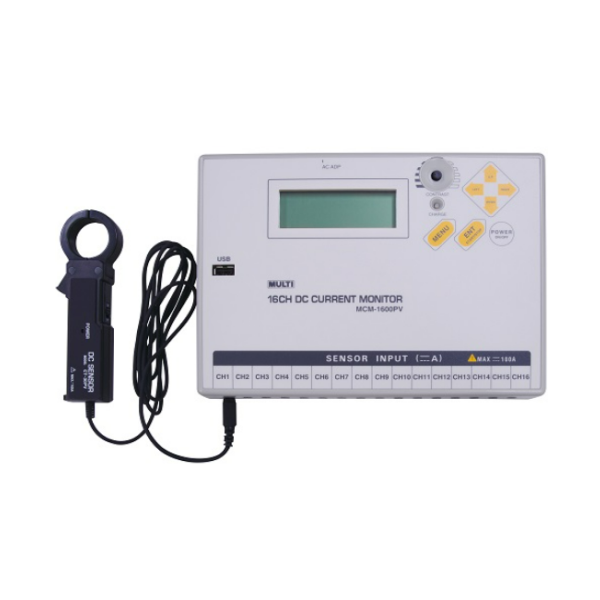

MULTI MCM-1600PV Multi Circuit DC Current Monitor (DC 0~99.9A)

Number of Measuring Circuit: 16 circuits (channels)

Measuring Range: DC 0~99.9A

Minimum Resolution: 0.1A

Measuring Accuracy: ±3%rdg±5dgt

Sampling: Approx. 20mS

Measuring Temperature: 0～50℃, less than 80%RH w/o condensing

Measuring Circuit Voltage: less than DC600V (insulated conductor)

Withstanding Voltage: AC2200V (50 / 60Hz) one minute between power supply source and housing case

Power Supply:

AC100V～240V with adapter

Internal Ni-hydride Battery

Battery Life: Approx. 4 days at continuous use by full charge

Dimensions & Weight: 236(W) x 170(H) x 56(D)mm, approx. 840gs

Standard Accessories: Carrying Case, AC Adapter, USB Cable, Instruction Manual

Optional Accessories: Clamp CT with i.d. 30mm & 2.8m cable, CT Carrying Case (for max. 8 CTs)
