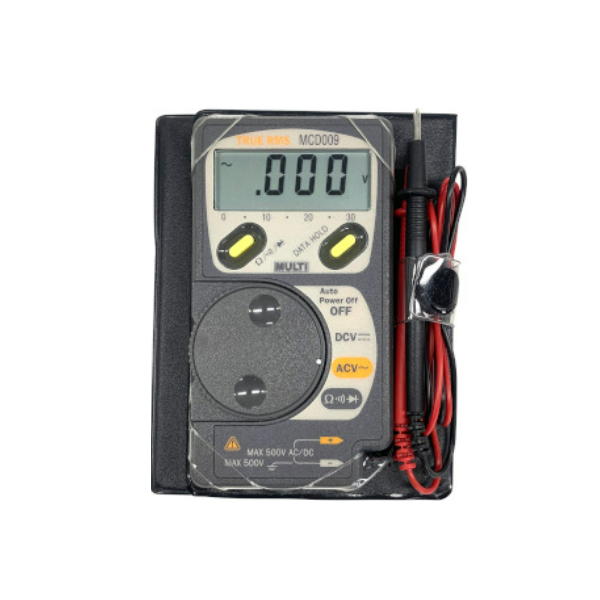

MULTI MCD-009 Pocket Type Digital Multimeter (500V DC, 500Vrms AC)

Measuring Range:

DC Voltage: 320mV/3.2V/32V/320V/500V

AC Voltage: 3.2V/32V/320V/500Vrms

Resistance: 320Ω/3.2kΩ/32kV/320kV/3.2MΩ/32MΩ

Diode Test:3.2V

Continuity Check:320Ω

Display: 3 1/2 digit LCD, max. reading of 3200

Sampling: 2 times/sec

Auto power off: Approx. 10minutes after the power switch on

Operating temperature: 0℃ to 40℃,<70% RH (Non-condensing)

Storage temperature: -20℃ to 60℃,<80%RH (Non-condensing)

Power supply: LR-44 (1.55V)×2

Power consumption: 5.0mW

Size: W60×H110×D9.5mm

Weight: Approx. 86g (Including batteries and case)
