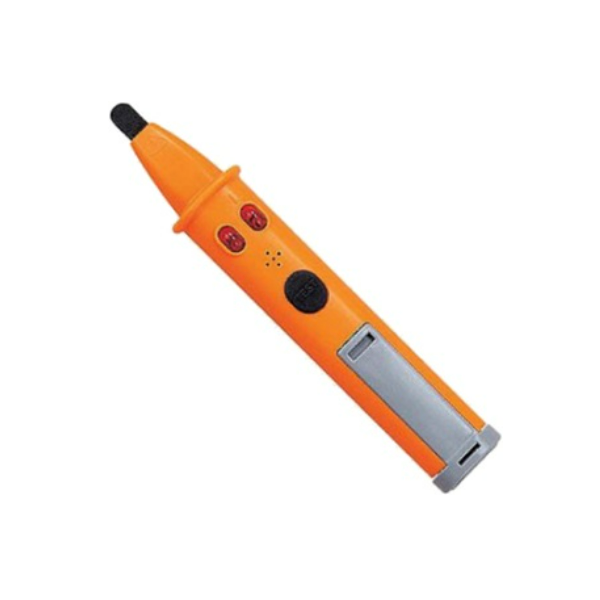

MULTI LV-1 Voltage Detector (50～500V)

Withstanding Voltage: AC 1500V, 1 minute

Insulation Resistance: 10MΩ or more by DC 500V insulation tester (between detecting tip and earth clip)

Size and Weight: 129 (L)×20 (W)×19.5 (D)mm, approx. 30g

Operating Temperature: 0℃～40℃

Power supply: 1.55V (LR-44)×2

Power consumption: Approx. 60 hours continuous

Detectable voltage range(50/60Hz):

For insulation cover: AC 50～500V phase to earth

For bare terminal: AC 0～300V phase to earth

Minimum detectable voltage: AC40V (Factory setting) (Sensitivity is adjustable)

Detection signal: Flashing of red LED light and intermittent beeper (For both voltage detection and insulation fault)
