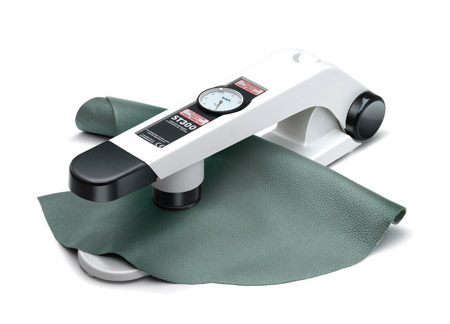

MSA ST300A Softness tester (0.1mm, analogue dial)

Analogue dial graduated in 0.1mm divisions

Apertures: 35, 25 and 20mm (15 and 10mm optional for special applications)

Cylindrical Mass: 530g ± 10g

Load Pin Travel: 11.5mm ±0.1mm in 1.5s ±0.5s

Static Force: 5.20 ± 0.1N

Total Test Force: 6.13N to 5.5N

Net Weight: 4.5Kg

Dimensions: 49 x 15 x 11cm

Packed Dimensions: 59 x 25 x 18cm (wireless kit extra)

The ST 300 Softness Tester is a precision instrument that provides a dependable means of monitoring leather softness. The ST 300 is non-destructive, so doesn’t require samples to be removed from the leather prior to testing. This enables a quality system to be set up between supplier and customer whenever leather softness is a priority.

Good quality control is a key factor in running a successful, profitable business. In this respect, the Leather Industry is no exception. Traditionally, the grading of leather softness was achieved by means of subjective sensory analysis by skilled inspectors. The need was clearly identified for a simple, inexpensive and easy to use machine which would produce reliable, repeatable measurements on a range of leather with varying thickness and softness.

Good quality control is a key factor in running a successful, profitable business. In this respect, the Leather Industry is no exception. Traditionally, the grading of leather softness was achieved by means of subjective sensory analysis by skilled inspectors. The need was clearly identified for a simple, inexpensive and easy to use machine which would produce reliable, repeatable measurements on a range of leather with varying thickness and softness.
