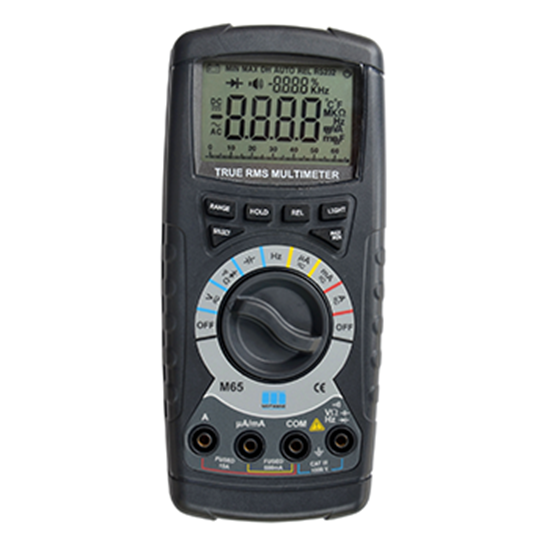

Manufacturer: MOTWANE
Model: M65
Origin: India
Warranty: 12 months
DC Voltage: 6 V, 1 mV, ±(0.25% + 3)
60 V, 10 mV, ±(0.25% + 3)
600 V, 100 mV, ±(0.25% + 3)
1000 V, 1 V, ±(0.5% + 3)
DC Current:
600 µA/6000µA, 0.1µA/1µA, ±(1.2%+5)
60 mA/600mA, 10µA/100µA, ±(1.5%+5)
10A, 10mA, ±(1.5%+8)
AC Voltage (50Hz - 500Hz) Trms
6 V, 1 mV, ±(1% + 5)
60 V, 10 mV, ±(1% + 5)
600 V, 100 mV, ±(1% + 5)
1000 V, 1 V, ±(1.2% + 8)
AC Current range (50Hz-500Hz) Trms
600 µA/6000µA; 0.1µA/1µA; ±(1.5%+5); 0.8A/250V DC/AC
60 mA/600mA; 10µA/100µA; ±(1.8%+5) 0.8A/250V DC/AC
10A; 10mA, ±(2.0%+8) ; 20A/250V DC/AC
Duty cycle:1.00% - 98.9%; 0.1%; ±(0.5% + 30); 440V DC/AC rms
Diode: 6V; 1 mV; ≤ 3.0V DC approx., ≤ 2 mA approx.
Continuity: 600.0Ω; 0.1 Ω; -3.3V DC approx.
Operating Temperature : 0°C to 50°C
Storage Temperature : -20°C to 60°C
Relative Humidity : 80% RH @ 5°C to 31°C ,50% RH @ 31°C to 40°C Non-condensing
