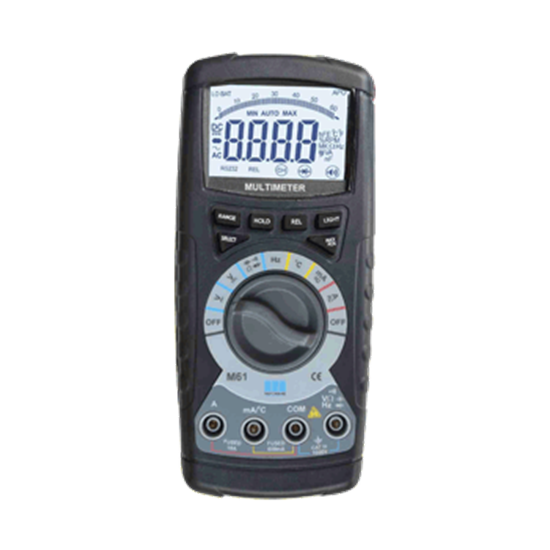

Manufacturer: MOTWANE
Model: M61
Origin: India
Warranty: 12 months
Display : 6,000 Count LCD display with white backlit.
Display Update Rate : 3 times per second nominal.
Dimensions (WxHxD) : 94 X 205 X 36 mm approx.
Weight : 450g. approx.
Ranges : DC Voltage:- 5, AC Voltage:- 4,Resistance-6, Capacitance-6, Frequency: - 7, DC Current-4, AC Current-4, Temperature-1.
Additional Functions : Select, Range, Hold/Light, Rel, Hz/Duty, Max./Min, Diode, Continuity & Duty cycle measurement.
Operating Temperature : 0°C to 50°C
Storage Temperature : - 20°C to 60°C
Relative Humidity : 80% RH @ 5 C to 31 C , 50% RH @ 31 C to 40 C Non-condensing
Power Supply : Battery 1.5V AAA size x 2 Nos.
Power Consumption : 3.5 mA typical.
Low Battery Indication : ‘LO BAT’ is displayed below 2.4V approx
Fuse protection for ‘mA/°C’Input Terminal : 0.8A/250V fast blow type Ceramic fuse.
Fuse protection for 10A Input Terminal 10A/250V fast blow type Ceramic fuse
DC Voltage :
600mV; 0.1mV; 600.0mV; ±(0.5%+3); 1050V DC/AC rms
6V; 1mV; 6.000V; ±(0.5%+3); 1050V DC/AC rms
60V; 10mV; 60.00V; ±(0.5%+3); 1050V DC/AC rms
600V; 100mV; 600.0 V; ±(0.5%+3); 1050V DC/AC rms
1000V; 1V; 1000V; ±(0.8%+3); 1050V DC/AC rms
AC Voltage :
6V; 1mV; 6.000V; ±(1%+5); 1050V DC/AC rms
60V; 10mV; 60.00V; ±(1%+5); 1050V DC/AC rms
600V;100mV; 600.0V; ±(1%+5); 1050V DC/AC rms
750V; 1V; 750V;±(1.2%+8); 1050V DC/AC rms
DC Current Range:
60mA; 0.01mA; 60.00mA; ±(1%+5), 0.8A/250V DC/AC fuse protection
600mA; 0.1mA; 600.0mA; ±(1%+5), 0.8A/250V DC/AC fuse protection
6A; 1mA; 6.000A; ±(1%+5), 10A/250V DC/AC fuse protection
10A; 10mA; 10.00A; ±(1.2%+5) 10A/250V DC/AC fuse protection
AC Current Range
60mA; 0.01mA; 60.00mA; ±(1.2%+5); 0.8A/250V DC/AC fuse protection
600mA; 0.1mA; 600.0mA; ±(1.2%+5); 0.8A/250V DC/AC fuse protection
6A; 1mA; 6.000A; ±(1.2%+5); 10A/250V DC/AC fuse protection
10A; 10mA; 10.00A; ±(1.5%+5); 10A/250V DC/AC fuse protection
Resistance Range:
600 Ω; 0.1Ω; 600.0 Ω; ±(0.5%+3), 230V DC/AC rms
6 KΩ; 1Ω; 6.000 KΩ;±(0.5%+3), 230V DC/AC rms
60 KΩ 10 Ω 60.00 KΩ; ±(0.5%+3), 230V DC/AC rms
600 KΩ; 100 Ω; 600.0 KΩ; ±(0.5%+3) , 230V DC/AC rms
6 MΩ; 1 KΩ; 6.000 MΩ; ±(1%+5), 230V DC/AC rms
60 MΩ; 10 KΩ; 60.00 MΩ; ±(3%+5) , 230V DC/AC rms
Capacitace Range:
40nF; 0.01nF; 39.99nF; ±(3.0%+10) , 230V DC/AC rms
400nF; 0.1nF; 399.9nF; ±(3.0%+10) , 230V DC/AC rms
4µF; 1nF; 3.999µF; ±(3.0%+10) , 230V DC/AC rms
40µF; 10nF; 39.99µF;±(3.0%+10) , 230V DC/AC rms
400µF; 100nF; 399.9µF; ±(3.0%+10) , 230V DC/AC rms
4000µF; 1µF; 3999µF; ±(5.0%+20) , 230V DC/AC rms
Frequency Range:
10Hz; 0.001Hz; 9.999Hz; ±(0.1%+3); 230V DC/AC rms
100Hz; 0.01Hz; 99.99Hz; ±(0.1%+3); 230V DC/AC rms
1KHz; 0.1Hz; 999.9Hz; ±(0.1%+3); 230V DC/AC rms
10KHz; 1Hz; 9.999KHz; ±(0.1%+3); 230V DC/AC rms
100KHz; 10Hz; 99.99KHz; ±(0.1%+3); 230V DC/AC rms
1000KHz; 100Hz; 999.9KHz; ±(0.1%+3); 230V DC/AC rms
10MHz; 1KHz; 9.999MHz; ±(0.1%+3); 230V DC/AC rms
Diode Test: 6V; 1mV; ≤ 2.85V; ≤ xấp xỉ 1.22mA; 230V DC/AC rms
Contiguity Test: 600.0Ω; 0.1Ω; xấp xỉ <60 Ω; 230V DC/AC rms
Duty Cycle Measurement: 0.1%-99.9%; 0.1%; ±0.5%+3 số; 230V DC/AC rms
Temperature Measurement: 20°C đến 1200°C; ±(1% +20°C); 230V DC/AC rms
