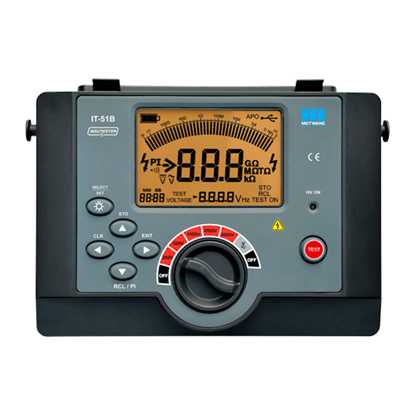

Manufacturer: MOTWANE
Model: IT-51B
Origin: India
Warranty: 12 months
Nominal test voltage : DC 250V, 500V, 1000V, 2500V & 5000V
Accuracy : ± 10% +5 digit
Short‐circuit test current : ≤1.4mA (±0.5mA) approx.
Overload Protection : 230V DC/AC rms for 30 sec
Insulation Range : 0.1MΩ to 1TΩ
Measurement : Digital & Analog indication.
Display: LCD display with Backlit
Default Test on time : 30 sec.
Selectable test time : 1 sec. to 99 minutes.
Data Storage functions : 1000 readings.
PC interface : USB port
Power Supply : 14.8V Rechargeable Li-ion battery
Power Consumption : 40mA approx.
Auto Power Off : After 15 min.
Dimensions ( approx ) : 230mm X 165mm X 95mm
Physical Specification
Weight : 1.5kg approx
Operating Temp. : 0 C to 50 C
Storage Temp. : ‐20 C to 60 C
Relative Humidity : 90% RH at 0 C to 40 C max.(Non Condensing); 70% RH at 40 C to 50 C max(Non Condensing).
Insulation Resistance : 0.1MΩ to; 1TΩ
250V; 50 GΩ; ±(5% +5)
500V; 100GΩ; ±(5% +5)
1000V; 200GΩ; ±(5% +5)
2500V; 500GΩ; ±(5% +5)
5000V; 1TΩ; ±(5% +5)
Voltage Measurement:
0-600V DC; ±(5% +5)
0-600V AC rms; ±(5% +5)
PI Measurement: 0-99.9; ±(5% +5); 0.01
Standard Accessories:
Test Lead set (3 mtr. Long shrouded banana with crocodile clip): Red lead for +ve terminal ; Black lead for ‐ve terminal ; . Green lead for GUARD terminal
Instruction Manual; Calibration sheet; Carrying Bag
Optional Accessories:
Test Lead set (10 mtr. Long shrouded banana with crocodile clip: Red lead for +ve terminal ; Black lead for ‐ve terminal; Green lead for GUARD terminal
USB Cable; Software CD
