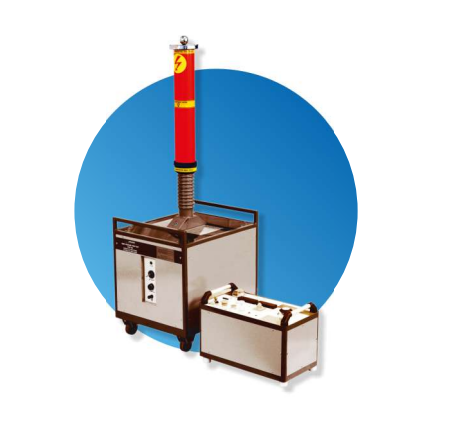

MOTWANE HVG 40 High Voltage Test Set (0-40 kV)

Output Voltage: 0-40 kV continuously variable

Output Current: 5 mA, 10 mA & 20 mA manually selectable ranges

Output Current: Analog Meter for output voltage (kV) & output leakage current (mA)

Indication: ON/OFF indication; Over Heat LED indication; Over Current Trip LED indication

Digital Version (Optional): Available

Protection: Circuit Breaker in Mains input; Variac Zero Inter Lock; Built in Auto Discharge; Over Current Trip; Over Temperature Trip

Cooling: Air Cooled

Duty Cycle: 5 min ON / 10 min OFF

Timer Mode: Manually selectable as required

Mode of operation: Manual

Output Voltage Control: Controlled manually through variac

Power Supply: 230V AC ± 10%, 50 Hz, Single phase

Working Temp.: 0 C - 55 C

Storage Temp.: -5 C - 60 C

Unit Structure: Single Unit Device

Dimensions: 525mm(L) x 300mm(W) x 470mm (H) + Handle 50mm + Wheel 65mm

Approx. Weight in Kg: 40 kg Approx

Standard Accessories

HV Output Cable 10 sq mm single core screen cable 5 meter length with heavy duty clamp.

Mains supply cord 10 meter length.

Yellow / Green 10 sq mm earthing cable 5 meter length.
