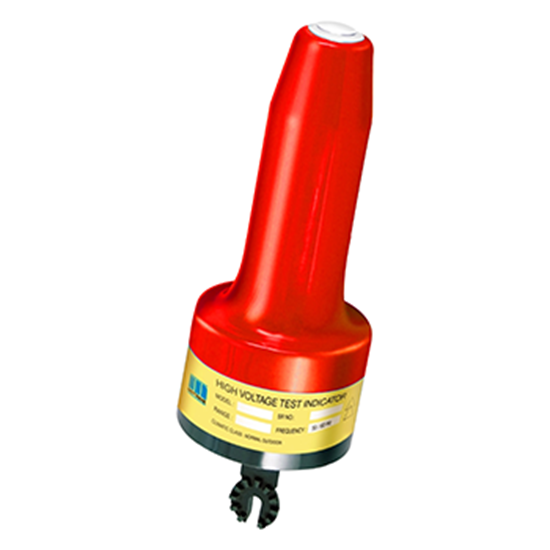

MOTWANE HV-440 High Voltage Detector

Manufacturer: MOTWANE

Model: HV-440

Origin: India

Warranty: 12 months

Test Voltage Range: 66KV to 440 KV

Insulation Resistance: Greater than 100M Ohms by 1KV I.R Tester

Dielectric Strength: Equivalent or greater than as per model selected

Current Consumption: 30mA maximum

Battery low: 7.2 V nominal

Battery: 9V/ battery type 6F22 or equivalent

Visual Indication: High Bright LEDs flashing

Audible Indication: Buzzer beeps loudly

Insulated Stick: Fibre Glass; length 1.2m or 3m; 2kg

Temperature Range: 5°C to 50°C

Humidity: <85% RH non condensing

Storage Temperature: 10°C to 60°C, < 85% RH non condensing range
