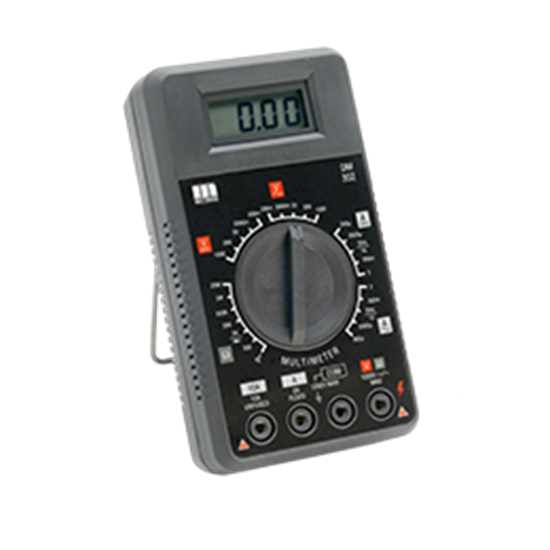

Manufacturer: MOTWANE
Model: DM 352
Origin: India
Warranty: 12 months
AC Current:
200µA; ± 1.00% + 5; 0.1µ A
2000µA; ± 1.00% + 5; 1µ A
20mA; ± 1.00% + 5;10µ A
200mA; ± 1.00% + 5; 100µ A
2A; ± 1.25% + 5; 1mA
10A; ± 1.50% + 5; 10mA
DC current:
200µA; ± 0.75% + 2; 0.1µ A
2000µA; ± 0.75% + 2; 1µ A
20mA; ± 0.75% + 2;10µ A
200mA; ± 0.75% + 2; 100µ A
2A; ± 1.00% + 2; 1mA
10A; ± 1.25% + 2; 10mA
DC Voltage:
200.0mV; ± 0.5% + 5 , 0.1mV, ± 400V DC, 450V AC( 40Hz-500Hz)
2000mV; ± 0.5% + 5 , 1mV, ± 1000V DC, 1000V AC( 40Hz-500Hz)
20V; ± 0.5% + 5 , 10mV, ± 1000V DC, 1000V AC( 40Hz-500Hz)
200V; ± 0.5% + 5 , 100mV, ± 1000V DC, 1000V AC( 40Hz-500Hz)
1000V; ± 0.5% + 5 , 1V, ± 1000V DC, 1000V AC( 40Hz-500Hz)
DC Voltage:
200.0mV; ± 0.25% + 1 , 0.1mV, ± 630V DC/ 350AC
2000mV; ± 0.25% + 1 , 1mV, ± 1000V DC/AC
20V; ± 0.25% + 1 , 10mV, ± 400V DC/AC
200V; ± 0.25% + 1 , 100mV, ± 1000V DC/AC
1000V; ± 0.25% + 1 , 1V, ± 1000V DC/AC
Resistance:
200Ω; ± 0.50% ± 3, 400mV, 0.1Ω
2KΩ; ± 0.50% ± 3, 2.2V, 1Ω
20KΩ; ± 0.50% ± 3, 2.2V, 10Ω
200KΩ; ± 0.50% ± 3, 2.2V, 100MΩ
2MΩ; ± 0.50% ± 3, 2.2V, 0.001MΩ
20MΩ; ± 0.50% ± 3, 2.2V, 0.01MΩ
Continuity Test: :200Ω, <10Ω, 450 AC/DC
Display : 3½ Digit, 0.5" LCD with LOBAT and polarity Indication
Power : Single Standard 9 V battery (Type 6F22/216 or equivalent)
Over-range Indication" 1 display with other digits blanked
Transient Protection: 2KV( DCV, ACV and Ohm Range)
Temperature Coeficient:(0.10 x Specified Accuracy)/ Deg. C
Dimension (W X H X D) : 100 x45 x180 mm approx.
Weight: 500g. approx.
Response Time:< 1 sec
Accessories: Pair of test leads, Instruction Manual, 9V battery
