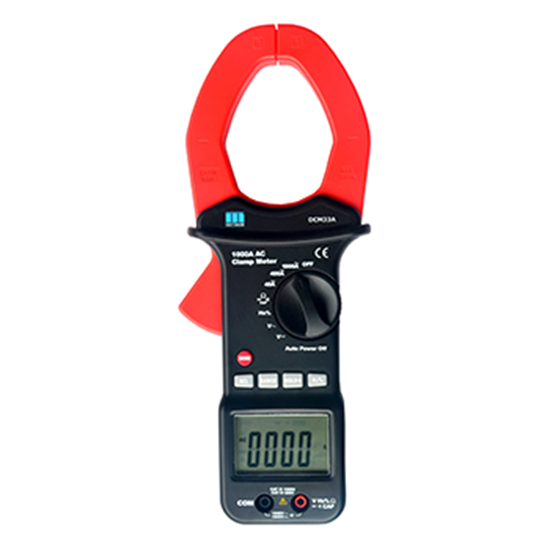

MOTWANE DCM33A Clamp Meter (AC 1000A)

Manufacturer: MOTWANE

Model: DCM33A

Origin: India

Warranty: 12 months

AC Current:

40.00 A; 0.01A; ± (2.5% + 10 digits)

400.0 A; 0.1A; ± (2.5 % + 5 digits)

1000 A; 1A; ± (3.0 % + 4 digits)

DC Voltage:

4.000 V; 0.001V; ± (0.5% + 3 digits); 10MΩ

40.00 V; 0.01V; ± (0.5% + 3 digits); 10MΩ

400.0 V; 0.1V; ± (0.5% + 3 digits); 10MΩ

1000 V; 1V; ± (0.5% + 3 digits); 10MΩ

Resistance:

400.0Ω; 0.1Ω; ± (1.0% + 4 digits)

4.000KΩ; 1Ω; ± (1.0% + 2 digits)

40.00KΩ; 10Ω ± (1.0% + 2 digits)

400.0KΩ; 100Ω ± (1.0% + 2 digits)

4.000MΩ; 1KΩ;± (1.5% + 3 digits)

40.00MΩ; 10KΩ; ± (2.0% + 3 digits)

Display : LCD

Capacitance (Auto ranging) : 40nF to 100µF

Frequency : 5Hz to 10MHz (Up to ±1.2% till 500KHz & ±1.5% for 10MHz)

Frequency (Sensitivity) : 10V rms min.

Duty cycle digits : 0.5 to 99.0% (±1.2% reading + 2 Pulse width 100µs - 100ms

Diode Test : Test current of 0.3mA typical; Open circuit voltage 1.5V DC typical

Continuity Check : Threshold <100 ; Test current < 1mA

Sampling Rate : 2 per second, nominal

Operating Temperature : -10 to 50°C

Relative Humidity : 90% (0 °C to 30 °C), 75% (30 °C to 40 °C), 45% (40 C to 50 °C)

Battery : One “9V” Battery

Dimensions/Weight : 270 x 107 x 50mm / 500g approx.

Safety: CAT III 1000V, CAT IV 600V

Standard Accessories : Test leads, Calibration certificate, Instruction manual, Carrying case
